3/2 방법 10.0 밀리미터 OD NC 학술적 물 디스팬서 솔레노이드 밸브봉

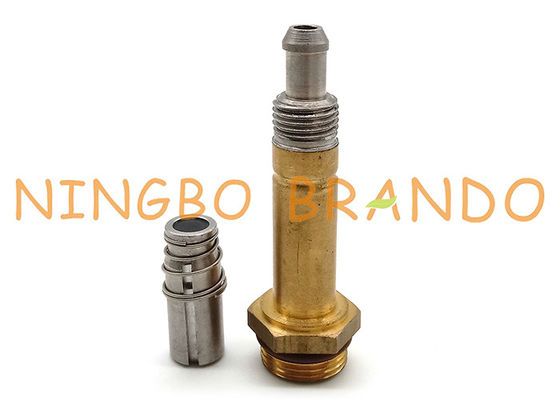

3/2 Way 10.0mm OD NC Brass Water Dispenser Solenoid Valve Stem

Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando Solenoid plungers are available in numerous designs and have been tested to meet rigorous performance requirements for solenoid valves. These solenoid plungers can be utilized in various applications including, air and fluid power applications, heating and cooling system regulation units, industrial, and automotive applications.

Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:9.9mm
Installation Height for Coil Assembling:28.1mm
Plunger Seal for Orifice Diameter:5.6mm
Guide Tube Material:Brass
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:3/2 Way
Non-working Status:Normally Close

Dimension of BAPC310029008 Armature Assembly:

Technical Data:

Armature
Armature also called iron core, it increase the electromagnetic force and help solenoid control the switch, flow and pressure. Armature of solenoid is made of soft iron. Steel can’t be raw material of armature. Once steel be magnetized, it will retain a long-term magnetism and can’t demagnetize, which makes electricity lose control of armature magnetism. In brief, an armature made of steel will lose the due advantages of solenoid.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
