원래 장소: | 닝보, 중국 |
브랜드 이름: | BRANDO |
인증: | CE, ISO |
모델 번호: | S-P-Z |
최소 주문 수량: | 5 PC |
---|---|
가격: | Negotiation |
포장 세부 사항: | PVC 가방, 그리고 나서 이너 박스, 그리고 나서 통, 그리고 나서 팔레트 |
배달 시간: | 지불 1 주 뒤에 |
지불 조건: | L/C, T/T, 서부 동맹, Paypal, MoneyGram |
공급 능력: | 달 당 10000000pcs |
상품 이름: | 공기 사일런서 목도리 | 튜브 OD (인치): | 1/8 , 1/4 , 3/8 , 1/2 , 3/4 , 1 |
---|---|---|---|
재료: | 놋쇠 | 일 압력 범위: | 0 내지 0.8MPa |
작동 온도: | -10 내지 +250C | 작동 매체: | 압축공기 |
하이 라이트: | 솔레노이드 밸브 사일런서,솔레노이드 밸브 목도리,공기 사일런서 1/4 " |

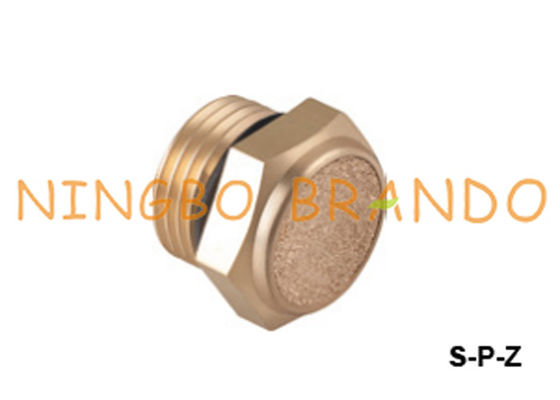

Brass Air Cylinder Pneumatic Solenoid Valve Silencer Muffler 1/4''
The three most common designs of pneumatic mufflers you could encounter are:
1. Cone-shaped pneumatic silencers
2. Flat-shaped pneumatic silencers
3. Cylindrical pneumatic silencers
Each design suits a different application as working temperature ranges and pressure ranges can affect suitability. There are also connection options to consider, such as threaded or push-in connectors, and housing materials which can dictate what type of pneumatic silencer your system should be using.
Technical data of Pneumatic Silencer Muffler:
Model
|
Working Medium
|
Working Pressure
(MPa)
|
Working Temp
(℃)
|
Circulation Capacity
|
Noise Effect
|
|
"S" data
|
Nominal Flux
|
|||||
-2.5
|
Compressed Air
|
0 to 0.8
|
-10 to +250
|
5
|
200L/Min
|
≥20dB
|
-6
|
20
|
960L/Min
|
||||
-8
|
40
|
1920L/Min
|
||||
-10
|
60
|
2880L/Min
|
||||
-15
|
110
|
5280L/Min
|
||||
-20
|
190
|
9120L/Min
|
||||
-25
|
300
|
10000L/Min
|
||||
-32
|
400
|
19200L/Min
|
≥25dB
|
|||
-40
|
650
|
31200L/Min
|
||||
-55
|
700
|
33600L/Min
|
Dimension of Pneumatic Silencer Muffler:
Model No
|
φD
|
M
|
L1
|
L
|
S-P-Z2.5
|
M6x1
|
6
|
10
|
10
|
S-P-Z4
|
M8x1
|
7
|
11
|
13
|
S-P-Z6
|
M10x1
|
7
|
12
|
14
|
G1/8''
|
7
|
12
|
14
|
|
S-P-Z8
|
M12x1.25
|
9
|
15
|
16
|
G1/4''
|
9
|
15
|
16
|
|
S-P-Z10
|
M16x1.5
|
10
|
17
|
19
|
G3/8''
|
10
|
17
|
19
|
|
S-P-Z15
|
M20x1.5
|
11
|
18
|
27
|
G1/2''
|
11
|
18
|
27
|
|
S-P-Z20
|
M27x2
|
13
|
23
|
32
|
G3/4''
|
13
|
23
|
32
|
|
S-P-Z25
|
M33x2
|
15
|
25
|
36
|
G1''
|
15
|
25
|
36
|
List of other Brass Pneumatic Air Muffler:
Throttle Valve | C Type Throttle Valve | PTV Throttle Valve | SD Timing Muffler |
Muffler (Sintered) | Muffler (Flat Head) | LM Aluminous Muffler | G Type Muffler |
D Type Muffler | E Type Muffler | PSU Plastic Muffler | SU Plastic Muffler |
