흡진장치를 위한 4 " DMF-Y-102S BFEC 가라앉은 펄스 제트 밸브

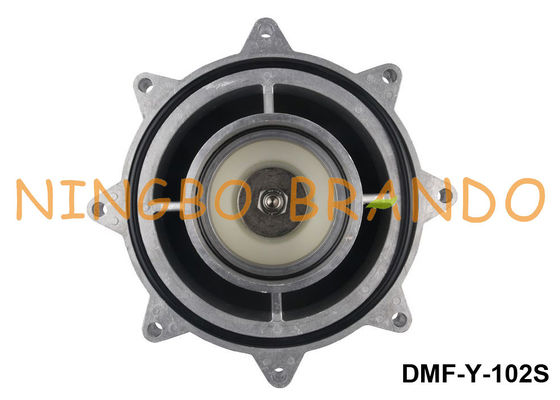

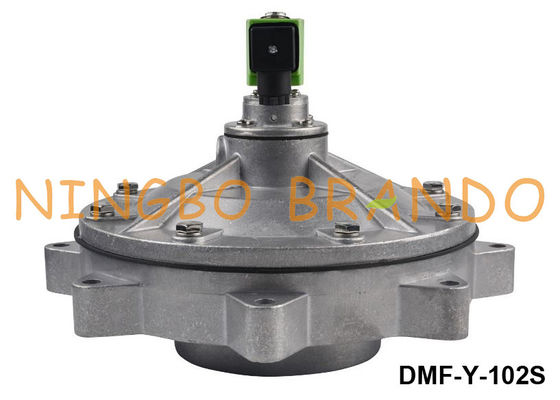

4'' DMF-Y-102S BFEC Submerged Pulse Jet Valve For Dust Collector

Submerged pulse jet valve: The valve body full immerse in the intake air bags, direct control of the diaphragm valve by electrical signals.

Working principle:

The pulse jet valve diaphragm into before and after two of the gas chamber, when switching compressed air, compressed air through the orifice of the gas chamber after entering, and at the time of the gas chamber pressure after the valve diaphragm components will close to losing exports, electromagnetic pulse valve is in "off" status.

Pulse jet control instrument signal that the pulse jet valve bit back, after the gas chamber put stomatal open, and the gas chamber pressure loss after quickly, diaphragm components moved, compressed air through the valve lose export injection, pulse jet valve in the "open" status.

Pulse jet control instrument signal disappears, pulse jet valve bit reset, and the gas chamber after put stomatal closure, the gas chamber pressure after that close to the valve diaphragm component output, pulse jet valve and in "off" status.

Technical Data of  Y series Submerged Pulse Jet Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Dimension of DMF-Y-102S BFEC Pulse Jet Valve:

Video of DMF-Y-102S Submerged Pulse Jet Valve:

More BFEC Pulse Valve For You to Choose:

           Right Angle Type                         Quick Mount Type                         Submerged Type

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
