2 방식 NC 스테인레스 강 나선부 시트 잠수부 솔레노이드 밸브봉

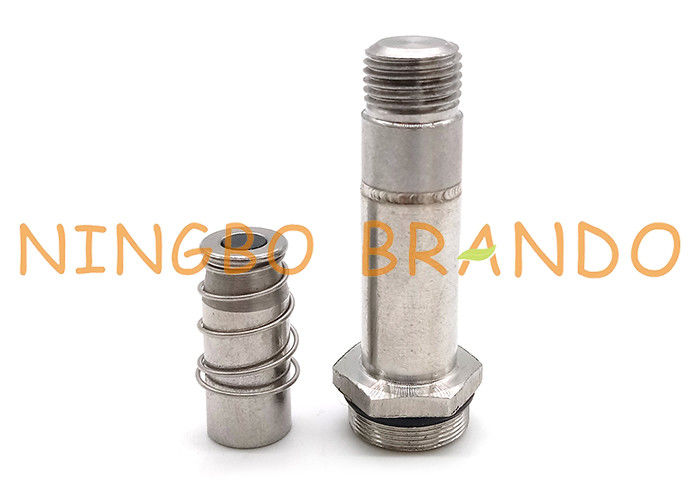

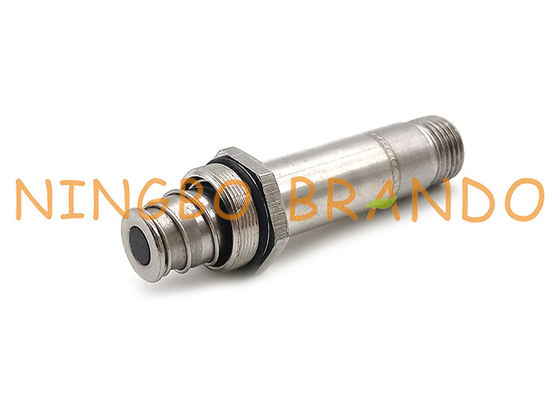

2 Way NC Stainless Steel Threaded Seat Plunger Solenoid Valve Stem

This is a set of 2 way normally closed solenoid valve armature assembly, including 1 x stainless steel 304 guide tube, 1 x magentic plunger with NBR seal and 1 x stainless steel spring. The plunger tube outer diameter is 10mm, so it is suitable to 10mm inner hole diamter solenoid coil. The standard plunger's seal material is NBR, but HNBR, VITON, EPDM, Silicone are all available to customize.

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

       Copper Shading Ring                          Thead Seat

               Plunger Slot                                   NBR Seal

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Armature
Armature also called iron core, it increase the electromagnetic force and help solenoid control the switch, flow and pressure. Armature of solenoid is made of soft iron. Steel can’t be raw material of armature. Once steel be magnetized, it will retain a long-term magnetism and can’t demagnetize, which makes electricity lose control of armature magnetism.

As we all know, armature is used to enhance magnetic of solenoid. When you choose the materials for solenoid, just pick the one that has magnetic conductivity larger than1. This kind of material is common, such as manganese, cobalt and such type of metallic oxide. In a word, larger magnetic conductivity armature has, larger of magnetic field of solenoid will has. Compared to iron, other metals have less magnetic conductivity and higher cost, so that they are fairly applied for armature manufacture.
