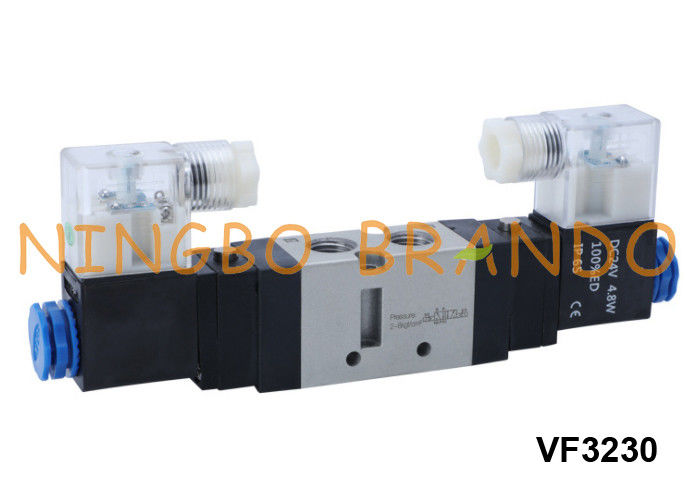

Name: VF3230 SMC Type Pneumatic Air Solenoid Valve 5/2 Way 24 Volt 220 Volt
Brand: Brando
SKU: VF3230
Price: 3 USD
Availability: InStock
Rating: 5 (165 reviews)

홈 제품 소개 공압 솔레노이드 밸브

VF3230 SMC Type Pneumatic Air Solenoid Valve 5/2 Way 24 Volt 220 Volt

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	Brando
인증:	CE
모델 번호:	VF3230

결제 및 배송 조건:

최소 주문 수량:	1 PC
가격:	$3 to $ 5 per pc
포장 세부 사항:	개별적 박스, 통, 팔레트
배달 시간:	4 내지 7 근무일
지불 조건:	L/C, T/T, PayPal, 서부 동맹, MoneyGram
공급 능력:	달 당 200000 PC

접촉

상세 제품 설명

벨브 유형:	5곳 길 2 위치	포트의 크기:	In=Out=1/4, Exhaust=1/8
압력 범위:	0.15 0.8MPa에	맥스 압력저항:	1.2 MPa
본체 소재:	알루미늄 합금	배선용 형식:	와이어 또는 DIN43650 연결기를 이끄세요
전압:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
하이 라이트:	Pneumatic Solenoid Valve 24 Volt , Pneumatic Solenoid Valve SMC , SMC VF3230

VF3230 SMC Type Pneumatic Air Solenoid Valve 5/2 Way 24 Volt 220 Volt

Directional control pneumatic solenoid valves and manifolds direct air to pneumatic actuators, vacuum equipment and as pilot air for large-scale industrial process valves making them fundamental to industrial automation applications.

BRANDO is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

* 5/2 Way Pneumatic Valve

* 5/3 Way Pneumatic Valve

* 3/2 Way Pneumatic Valve

* 2/2 Way Pneumatic Valve

Technial Data of VF & VZ Series Pneumatic Solenoid Valves:

Model	VF3130	VF33(4/5)30	VF5120	VF53(4/5)50	VZ5120	VZ53(4/5)50
Model	VF3230	VF33(4/5)30	VF5220	VF53(4/5)50	VZ5220	VZ53(4/5)50
Valve Type	5/2 way	5/3 way	5/2 way	5/3 way	5/2 way	5/3 way
Orifice Size	16mm² (Cv=0.89)	12mm² (Cv=0.67)	25mm² (Cv=1.4)	18mm² (Cv=1)	12mm² (Cv=0.67)	9mm² (Cv=0.50)
Fluid	Air (to be filtered by 40 μm filter element)
Operating Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminum Alloy
Max Frequency	5 cycle / sec
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Wire Form	Lead Wire or DIN43650 Connector

Dimension of VF3230 Pneumatic Solenoid Valve:

VF3230 SMC Type Pneumatic Air Solenoid Valve 5/2 Way 24 Volt 220 Volt 0

Production Video of Pneumatic Solenoid Valve:
