| 원래 장소: | 닝보, 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | CE, ISO |
| 모델 번호: | 비씨-12-2 |
| 최소 주문 수량: | 1PC |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 박스, 통, 팔레트 |
| 배달 시간: | 4 내지 7 근무일 |
| 지불 조건: | 전신환, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 5000PCS / 월 |
| 제품 이름: | 펄스 컨트롤러 | 채널 번호: | 12 |
|---|---|---|---|
| 입력 전압: | 220VAC | 출력 전압: | 220VAC |
| 펄스 너비: | 00.01~99.99초 | 펄스 간격: | 1~9999초 |
| 사이클 인터벌: | 1~9999초 | 적용: | 흡진장치 |
| 강조하다: | 12 Lines Pulse Controller,Pulse Valve Timer,Dust Collector Timer Controller |
||

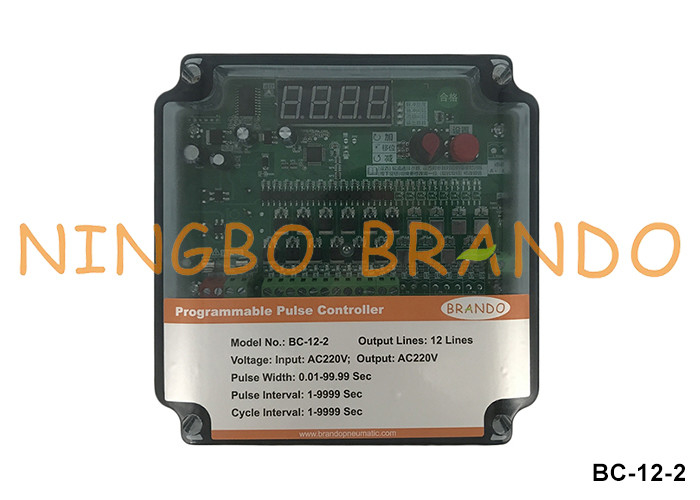

220VAC Input 220VAC Output 12 Lines Pulse Valve Timer Controller For Dust Collector
Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.
1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;
Technical Data:
| Model No | BC-08 | BC-10 | BC-12 | BC-16 | BC-20 | BC-24 | BC-30 | BC-36 | BC-52 | BC-64 |
| Channel No | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 52 | 64 |
| Input Voltage | 24VDC, 110VAC, 220VAC, other can be customized | |||||||||
| Output Voltage | 24VDC, 24VAC, 110VAC, 220VAC, other can be customized | |||||||||
| Pulse Width | 0.1 to 999.9 Seconds | |||||||||
| Pulse Interval | 1 to 9999 Seconds | |||||||||
| Cycle Interval | 1 to 9999 Seconds | |||||||||
| Working Environment | 1. -25°C to +55°C 2. The relative humidity of the air does not exceed 85% 3. No serious corrosion gas and conductive dust 4. No violent vibration or shock |
|||||||||
Detailed Images:
Controller Setting:
Controller Wiring:
Our Production:
Related Products:
|
|
|
|
| Pulse Valve | Solenoid Coil | Solenoid Armature | Diaphragm |
