원래 장소: | 닝보, 중국 |
브랜드 이름: | BRANDO |
인증: | CE, ISO |
모델 번호: | AE1822B |
최소 주문 수량: | 10pcs |
---|---|
가격: | 협상 가능 |
포장 세부 사항: | 상자, 상자, 팔레트 |
배달 시간: | 4 내지 7 근무일 |
지불 조건: | T/T, Western Union, PayPal |
공급 능력: | 한 달에 10000pcs |
제품 이름: | 펄스 밸브 | 포트 크기: | 1 '' |
---|---|---|---|
신체 재료: | 알루미늄 (다이 캐스트) | 다이어프램 재료: | TPE |
작동 압력: | 1.5~8바 | 전압: | 24VDC, 24VAC, 110VAC, 220VAC |
강조하다: | AUTEL 1'' Pulse Jet Valve,AE1822B Pulse Jet Valve,AUTEL AE1822B Valve |

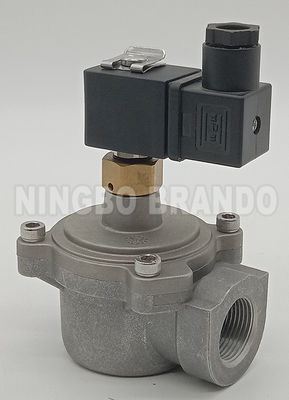

Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Threaded Type
2. Dresser Nut Type
3. Manifold Mount Type
4. Flanged Type
5. Straight Through Type
Technical Data:

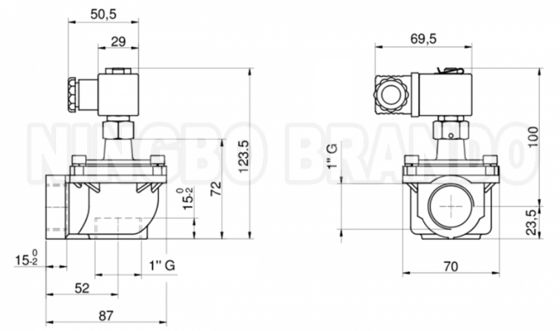

Main Dimension:
Our Production:
Related Products:
![]() |
![]() |
![]() |
![]() |
Coil | Armature | Diaphragm | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
