| 원래 장소: | 닝보, 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | CAC20T4 |
| 최소 주문 수량: | 8pcs |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자, 상자, 팔레트 |
| 배달 시간: | 근무일 4 ~ 5 일 |
| 지불 조건: | T/T, PayPal, Western Union |
| 공급 능력: | 한 달에 50000pc |
| 제품 이름: | 펄스 밸브 | 포트 크기: | G3/4'' |
|---|---|---|---|
| 신체 재료: | 알루미늄 (다이 캐스트) | 다이어프램 재료: | TPE (충격파) |
| 작동 압력: | 5 ~ 125psi | 전압: | 24VDC, 24VAC, 110VAC, 220VAC |
| 애플리케이션: | 흡진장치 | REF 번호: | CAC25T4012, CAC25T4002, CAC25T4022 |
| 강조하다: | GOYEN CAC20T4012 Pulse Valve,GOYEN CAC20T4022 Pulse Valve,GOYEN CAC20T4002 Diaphragm Valve |
||

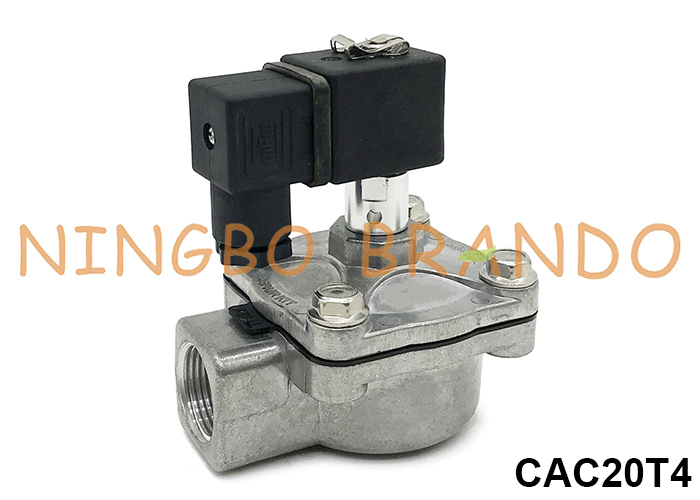

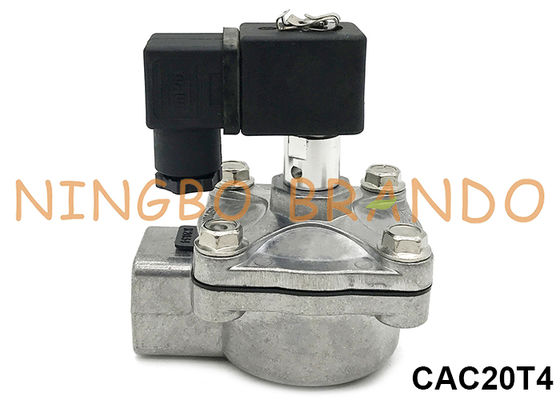

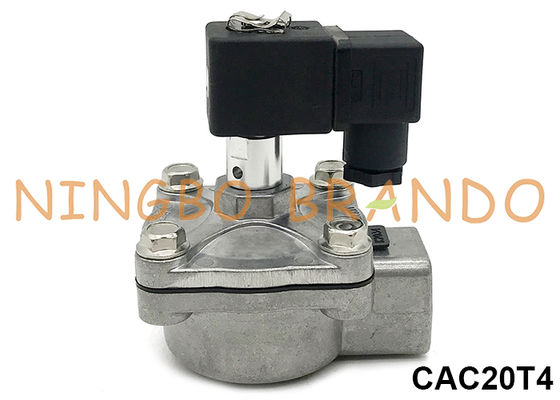

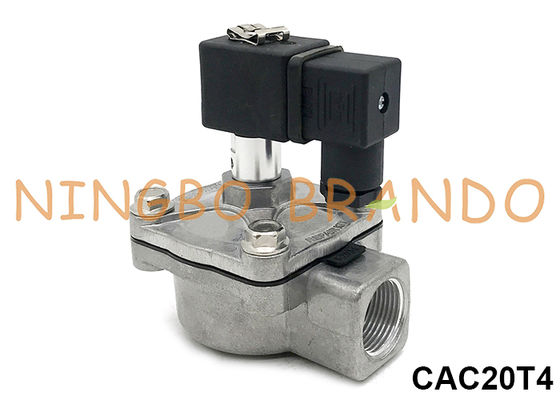

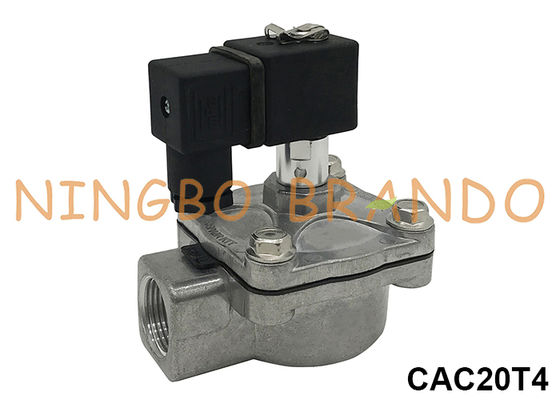

CAC20T4 GOYEN Type 4 Series 3/4'' Pulse Valve For Dust Collector System 24V 220V
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
| Integral Pilot | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T | CAC20T4 | CAC25T4 |
| Remote Pilot | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T | RCAC20T4 | RCAC25T4 |
| Orifice Size (mm) | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 | 20 | 25 |
| Port Size (Inch) | 1/2'' | 3/4'' | 1'' | 1-1/2'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 3/4'' | 1'' |
| Pilot Size | 1/8'' | 1/4'' | 1/8'' | |||||||
| Diaphragm Number | 1 | 2 | 1 | |||||||
| Working Pressure | 5 to 125 psi | |||||||||
| Diaphragm Material | NBR (Standard), FKM (Oprtional) | Shockwave | ||||||||
| Body Material | Aluminum (diecast) | |||||||||
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC | |||||||||

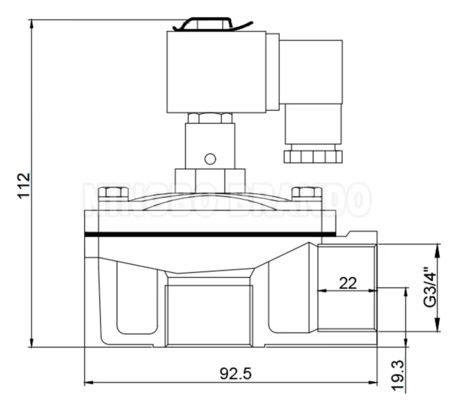

CAC20T4 Dimension:
Our Production:
Related Products:
|
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
