| 원래 장소: | 닝보, 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | CE, ISO |
| 모델 번호: | SCR353G235 |
| 최소 주문 수량: | 8pcs |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자, 상자, 팔레트 |
| 배달 시간: | 4 내지 7 근무일 |
| 지불 조건: | T/T, PayPal, Western Union |
| 공급 능력: | 한 달에 50000pc |
| 제품 이름: | 펄스 밸브 | 구조: | 전체 침수 |
|---|---|---|---|
| 포트 크기: | 103mm | Kv(m³/h): | 280 |
| 신체 재료: | 알류미늄 | 다이어프램 재료: | NBR (표준), FKM (선택) |
| 작동 압력: | 1 ~ 6 바 | 전압: | 24VDC, 24VAC, 110VAC, 220VAC |
| 강조하다: | ASCO 3.5'' Pulse Jet Valve,SCR353G235 Pulse Jet Valve,ASCO SCR353G235 Diaphragm Valve |
||

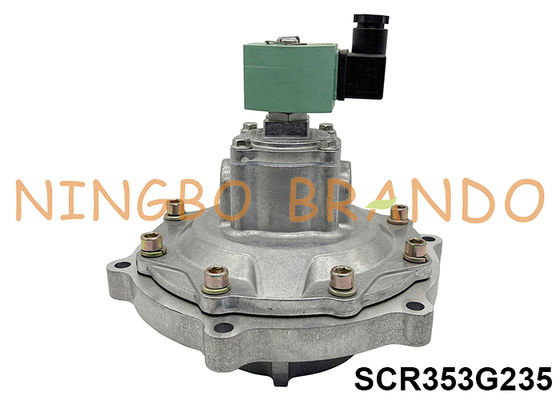

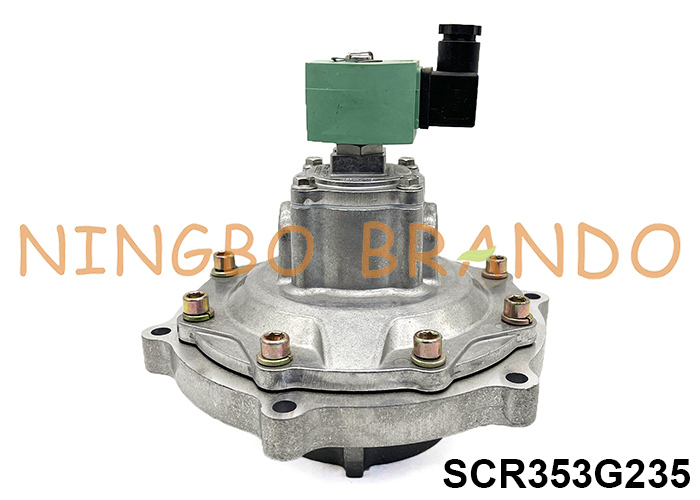

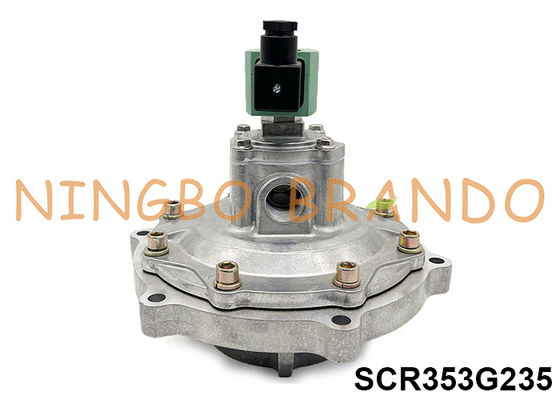

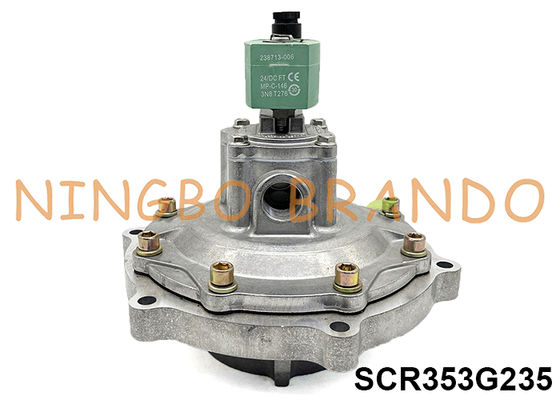

ASCO Type 3.5'' SCR353G235 Immersion Pulse Jet Valve 24V 110V 220V
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Right Angle Type
2. Compression Fitting Type
3. Full Immersion Type
4. Flanged Type
5. Straight Through Type
Technical Data:
|
Model No
|
SCXE353.060
|
SCR353G230
|
SCR353G235
|
|
Port Size
|
88mm
|
89mm
|
103mm
|
|
Orifice Size
|
75mm
|
76mm
|
90mm
|
|
Kv (m³/h)
|
170
|
210
|
280
|
|
Structure
|
Full Immersion
|
||
|
Body Material
|
Aluminum
|
||
|
Diaphragm Material
|
NBR (Standard), FKM (Optional)
|
||
|
Working Pressure
|
1 to 6 bar
|
||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||
SCR353G235 Dimension:
Our Production:
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
