| 원래 장소: | 닝보, 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | CE, ISO |
| 모델 번호: | G353A048 |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 상자, 상자, 팔레트 |
| 배달 시간: | 4 내지 7 근무일 |
| 지불 조건: | T/T, PayPal, Western Union |
| 공급 능력: | 한 달에 10000pcs |
| 제품명: | 펄스 제트 밸브 | 밸브 디자인: | 직각, 나사산 포트 |
|---|---|---|---|
| 원격 파일럿 연결: | 1/4" | 포트 크기: | 2 '' |
| 오리피스 크기: | 66mm | 다이어프램 재료: | NBR, FKM |
| 작동 압력 범위: | 0.35 내지 8.5 바 | 어플리케이션: | 흡진장치 |
| 강조하다: | Pulse Valve G353A048,2'' Pulse Valve,Pulse Jet Diaphragm Valve |
||

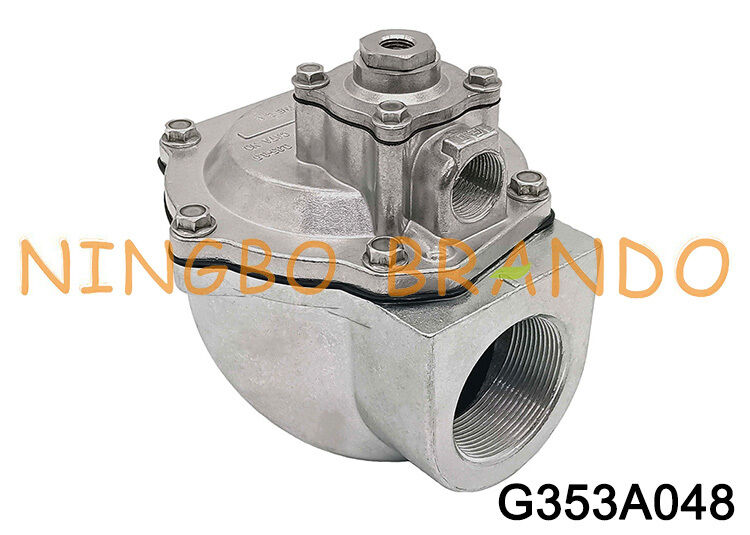

ASCO Type 2'' G353A048 Remote Pilot Diaphragm Pulse Jet Valve For Dust Collector
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Dimension of G353A048 Pulse Valve:
Technical Data of 353 Series Remote Pilot Pulse Valve:
|
Port Size
|
Remote Pilot Connection
|
Orifice Size
(mm)
|
Kv
|
Operating Pressure Differential (bar)
|
Model Number
|
|
|
(m³/h)
|
(l/min)
|
|||||
|
threaded pipe connection
|
||||||
|
G3/4''
|
G1/8''
|
24
|
14
|
233
|
0.35 to 8.5
|
G353A041
|
|
G1''
|
G1/8''
|
27
|
17
|
283
|
0.35 to 8.5
|
G353A042
|
|
G1 1/2''
|
G1/4''
|
52
|
46
|
768
|
0.35 to 8.5
|
G353A045
(Single Stage)
|
|
G1 1/2''
|
G1/8''
|
50
|
46
|
768
|
0.35 to 8.5
|
G353A046
(Dual Stage) |
|
G2''
|
G1/4''
|
66
|
77
|
1290
|
0.35 to 8.5
|
G353A048
|
|
G2 1/2''
|
G1/4''
|
66
|
92
|
1540
|
0.35 to 8.5
|
G353A049
|
Related Products:
|
|
|
|
| Pneumatic Fitting | Diaphragm | Remote Pilot Enclosure | Pulse Controller |
Production Picture of Pulse Valve:
