제품 소개솔레노이드 벨브 코일

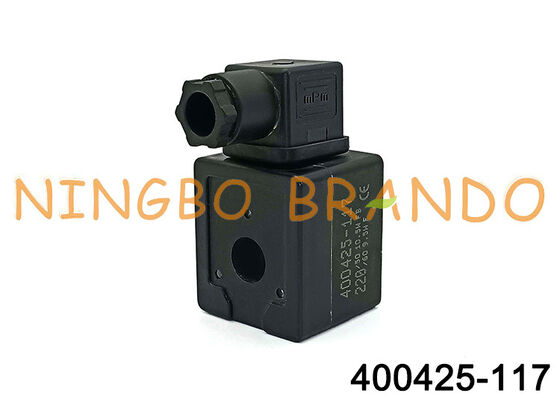

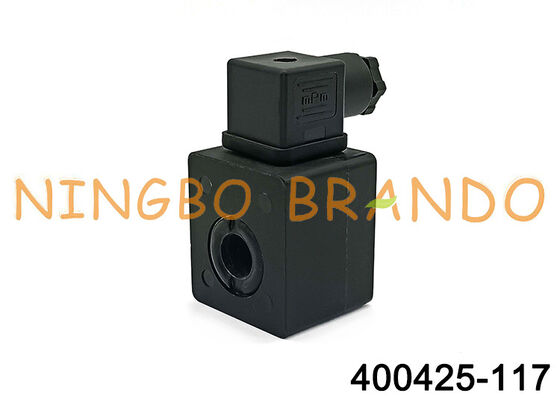

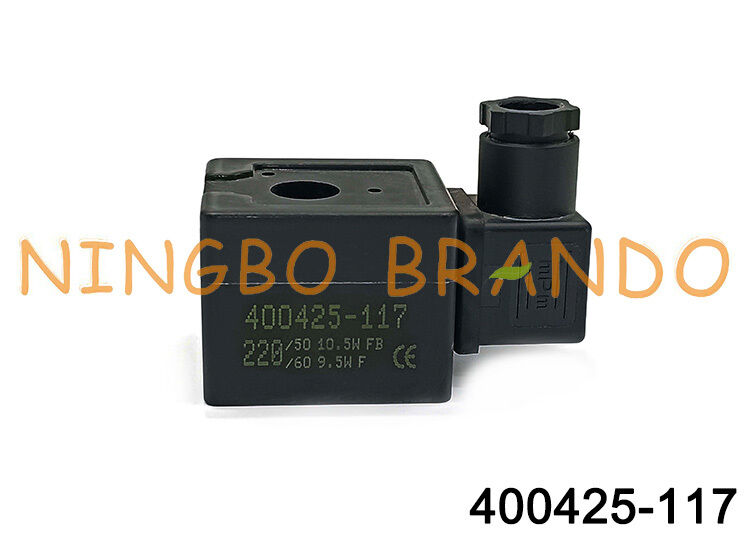

ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W

ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W

  • ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W
  • ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W
  • ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W
ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W
제품 상세 정보:
원래 장소: 중국 닝보
브랜드 이름: BRANDO
인증: None
모델 번호: BB14040007
결제 및 배송 조건:
최소 주문 수량: 200
가격: 협상 가능
포장 세부 사항: 내부 상자, 상자, 팔레트
배달 시간: 협상
지불 조건: T/T, 페이팔, 웨스턴 유니온
공급 능력: 한 달에 200000 PC
접촉
상세 제품 설명
제품명: 펄스 밸브 솔레노이드 코일 주문 코드: 400425-142, 400425-117
전압: 24VDC, 220VAC 힘: 9.5W, 10.5W, 11.2W
절연 등급: H, F 온도 클래스: 티, 비, 에프
커넥터: DIN 43650 양식 a 적합한 펄스 밸브 모델: SCG353A047, SCG353A050, SCG353A051
강조하다:

400425-117 ASCO Coil

,

ASCO Solenoid Coil 220VAC

,

ASCO Pulse Valve Solenoid Coil

ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W


This is a solenoid coil for asco pulse valve SCG353A047, SCG353A050, SCG353A051; ordering code: 400425-142, 400425-117; voltage: 24VDC, 220VAC; power: 9.5W, 10.5W, 11.2W; insulation class: H, F; temperature class: T, B, F; connector type: DIN 43650 Form A.


Pulse valves (also called diaphragm valves) are the “switch” for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.


Ordering Code of Solenoid Valve Coil:

Voltages
24V DC
48V DC
24V AC
48V AC
115V AC
230V AC
FT
400325-142
400325-144
400325-101
400325-105
400325-118
400325-117
FB
400325-242
400325-244
400325-201
400325-205
400325-218
400325-217
FT
400425-142
400425-144
400425-101
400425-105
400425-118
400425-117
FB
-
-
400425-201
400425-205
400425-218
400425-217
FF
400425-342
400425-344
-
-
-
-


Dimension & Data of Solenoid Coil, Armature for ASCO Pulse Valve:

ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 0

BRANDO Model
BB14040007
Voltage

12VDC, 24VDC,

24VAC, 110VAC, 220VAC
Power
21VA, 28VA,
10W, 11W, 18W, 30W
Insulation Class
H, F
Temperature Class
T, B, F
Connector
DIN 43650 Form A
Fitted Pulse Valve Model
SCG353A047
SCG353A050
SCG353A051


                    ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 1

BRANDO Model
BAPC214041405
Plunger Tube Material
Stainless Steel
Seal Material
NBR
Fitted Pulse Valve Model
SCG353A047
SCG353A050
SCG353A051


Video of 400425-142, 400425-117 Solenoid Coil:


BRANDO Solenoid Valve Coils Production Video:


More ASCO Type Pulse Valves for you to choose:

ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 2 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 3 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 4 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 5
Threaded Type Remote Pilot Type Straight Through Type Submerged Type
ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 6 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 7 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 8 ASCO Type Solenoid Pulse Valve Coil 400425-117 220VAC 9.5W 10.5W 9
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
