| 원래 장소: | 중국 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | BAPC210030001 |
| 최소 주문 수량: | 200 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라스틱 봉지, 상자, 카튼, 팔렛 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 한 달에 300000sets |
| 제품명: | 펄스 밸브 전기자 | 잠수부 튜브 소재: | 스테인레스 스틸 |
|---|---|---|---|
| 씰 재질: | NBR, Viton | 장착 된 펄스 밸브 모델: | AE1818B, AE1822B, AE1825B, AE1825R, AE1440B, AE1440R, AE1450B, AE1460B, AE1475I12 |
| 강조하다: | P10 Solenoid Armature,Solenoid Armature Plunger Tube P10,AUTEL Solenoid Valve Armature |
||

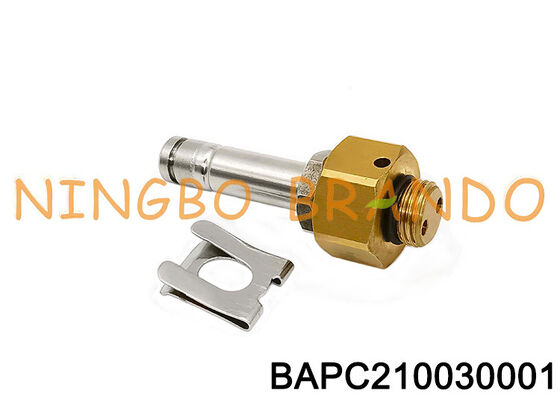

Armature Plunger P10 For AUTEL Pulse Jet Solenoid Valve Spare Part
This is P10 solenoid armature for AUTEL pulse jet valve AE1818B, AE1822B, AE1825B, AE1825R, AE1440B, AE1440R, AE1450B, AE1460B, AE1475I12. Electromagnetic pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Dimension & Data of Armature, Coil for Autel Pulse Valve:
|
BRANDO Model
|
BAPC210030001
|
|
Ordeirng Code
|
P10
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, VITON
|
|
BRANDO Model
|
BB10230001
|
|
Ordering Code
|
BC10
|
|
Voltage
|
24VDC, 24VAC,
110VAC, 220VAC
(50/60Hz)
|
|
Power
|
17VA, 17W
|
|
Connector
|
DIN 43650 Form A
|
|
Insulation Class
|
F, H
|
Video of Solenoid Armature For Autel Pulse Valve:
BRANDO Solenoid Valve Armature Production Video:
More Products For Autel Pulse Valve for you to choose:
|
|
|
|
| Pulse Jet Valve | Valve Diaphragm | Solenoid Armature | Pulse Controller |
