제품 소개맥박 제트기 벨브

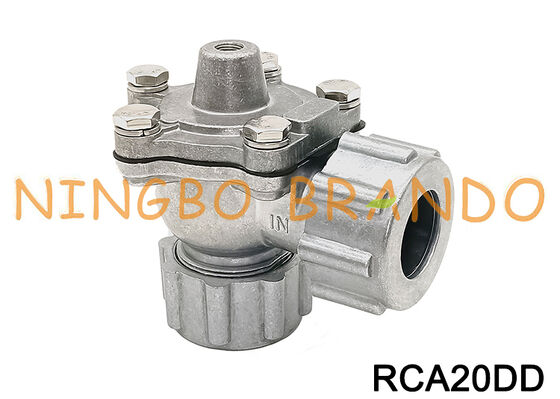

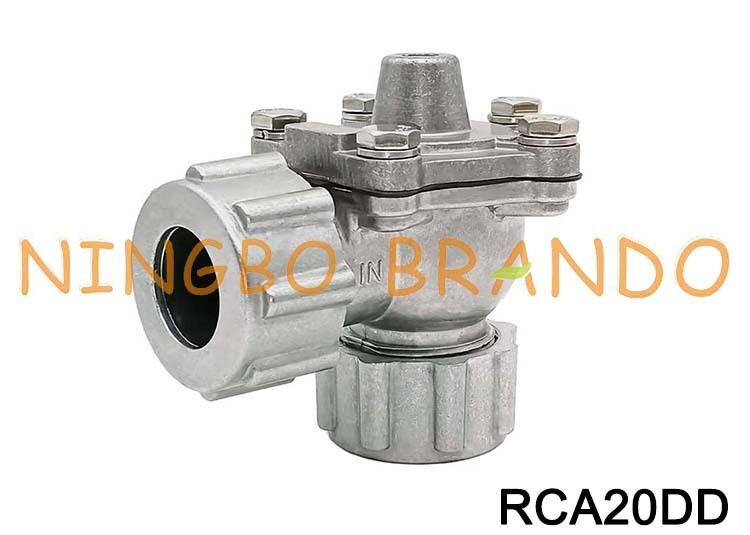

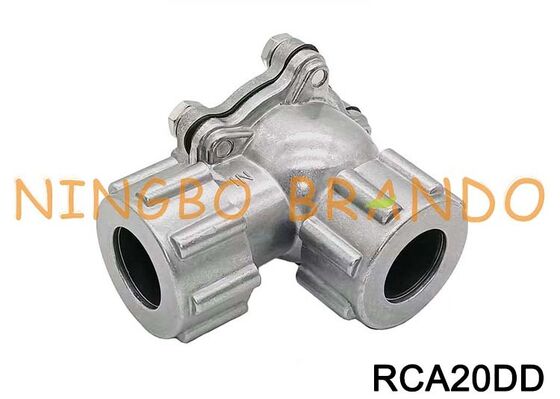

Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector

Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector

  • Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector
  • Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector
  • Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector
Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector
제품 상세 정보:
원래 장소: 중국 닝보
브랜드 이름: BRANDO
인증: CE, ISO
모델 번호: RCA20DD
결제 및 배송 조건:
최소 주문 수량: 5개
가격: 협상 가능
포장 세부 사항: 상자, 상자, 팔레트
배달 시간: 4 내지 7 근무일
지불 조건: T/T, 페이팔, 웨스턴 유니온
공급 능력: 달 당 5000PCS
접촉
상세 제품 설명
제품명: 펄스 밸브 구조: 드레서 너트
원격조타 사이즈: 1/8 '' 포트 크기: 3/4 ''
본체 재질: 알루미늄 (다이 캐스트) 다이어프램 재료: NBR
작동 온도: -5~+80°C 작동 압력 범위: 5 ~ 125psi
강조하다:

Goyen Pulse Valve RCA20DD

,

Goyen RCA20DD Pulse Valve

,

Goyen RCA20DD 3/4''

Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector


Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different designs of pulse jet valves:


1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type


RCA20DD Dimension:
Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 0


Technical Data:

Integral Pilot Model No
CA20DD
CA25DD
CA45DD
Remote Pilot Model No
RCA20DD
RCA25DD
RCA45DD
Port Size
3/4''
1''
1 1/2''
Pilot Size
1/8'', 1/4''
Pipe Connection
Dresser Nut
Diaphragm Number
1
2
Working Pressure
5 to 125 psi
Diaphragm Material
NBR (standard)
FKM (optional)
Body Material
Aluminum (diecast)
Voltage
24VDC, 24VAC, 110VAC, 220VAC


Our Production:

Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 1


Related Products:

Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 2 Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 3 Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 4 Goyen Type RCA20DD 3/4'' Dresser Nut Remote Pilot Pulse Jet Valve For Dust Collector 5
Fitting Diaphragm Remote Pilot Box Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
