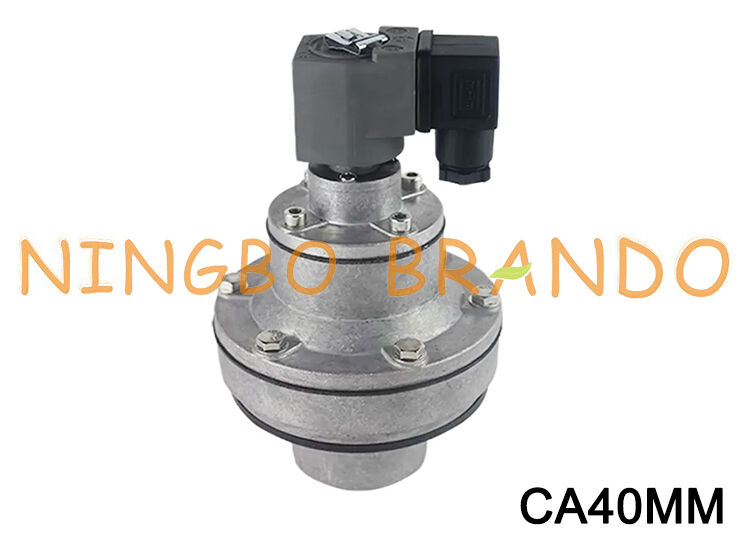

Goyen Type CA40MM 1.5'' Embedded Dust Collector Pulse Valve 12V 24V 110V 220V

Goyen Type CA40MM 1.5'' Embedded Dust Collector Pulse Valve 12V 24V 110V 220V

When the pulse electromagnetic pulse valve is not energized, the gas enters the decompression chamber through the constant pressure pipes of the upper and lower shells and the throttle holes in them. Because the valve core blocks the pressure relief holes under the action of the spring, the gas will not be discharged. Make the pressure of the decompression chamber and the air bag the same, and under the action of the spring, the diaphragm will block the blowing port, and the gas will not rush out. 2. When the pulse valve is energized, the valve core is lifted up under the action of electromagnetic force, the pressure relief hole is opened, and the gas is ejected. Due to the effect of the constant pressure pipe orifice, the outflow speed of the pressure relief hole is greater than that of the pressure relief chamber. The inflow speed of the pressure pipe gas makes the pressure of the air bag lower than the pressure of the lower air chamber, and the gas in the air bag pushes up the diaphragm, opens the blowing port, and performs gas blowing.

Technical Data of CA40MM Electromagentic Valve:

Construction of MM series pulse valve:

Body and Dresser Nuts: Aluminium (diecast)
Ferrule: 305 SS
Armature: 430FR SS
Diaphragm and seals: Nitrile or Viton
Spring: 304 SS
Screws: 302 or 304 SS
Outlet pipe: Schedule 40 wrought steel zinc
passivatedDiaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel

Features and benefits of CA40MM:

1. Installation easily, MM valves are installed through the tank.
2. Sensitive and reliable signal; Stable working
3. Low internal-resistance;Long operating-life
4. Most powerful air pulse due to full immersion design ; Large gas-displacement;High airflow impact-force
5. Ready for use in any dust collector design
6. Cost savings; urable materials and wide temperature range enhance lifespan ;Longer filter life, lower dust collector OPEX
7. With environmental and health & safety regulations
