| 원래 장소: | 중국, 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | RCA25T |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 상자, 팔레트 |
| 배달 시간: | 4-7 일 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 100000pcs |
| 포트 크기: | 1 '' | 파일럿 크기: | 1/8 '', 1/4 '' |
|---|---|---|---|
| 밸브 시리즈: | 티 | 밸브 구조: | 직각, 나사산 포트 |
| 다이어프램 재료: | NBR, Viton | 작동 압력 범위: | 0.35 ~ 0.85 MPa |
| 강조하다: | Goyen Diaphragm Valve RCA25T,Goyen Pulse Valve RCA25T000,Goyen Pulse Valve RCA25T010 |
||

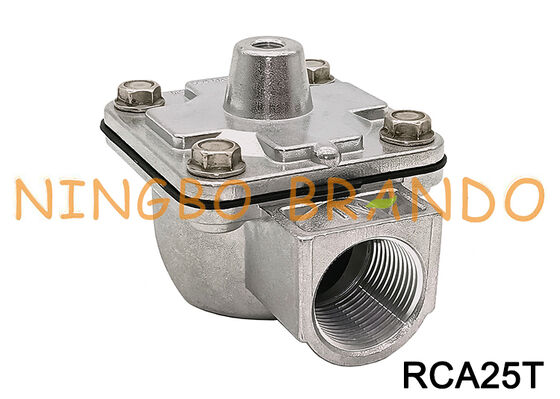

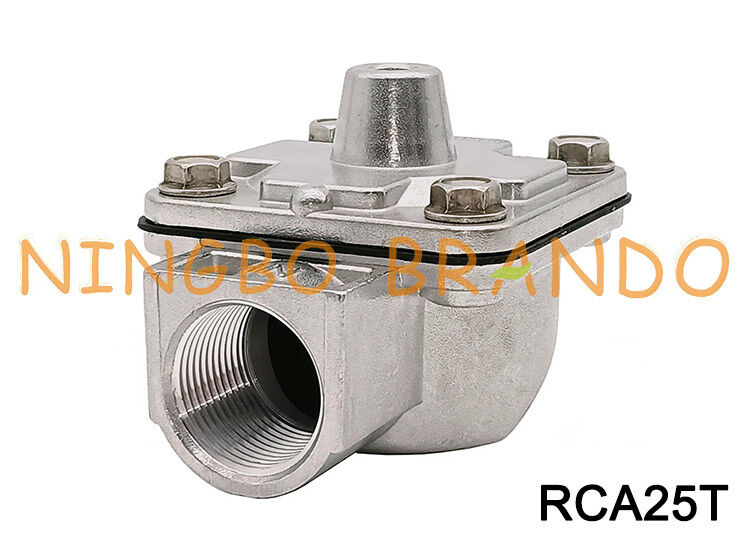

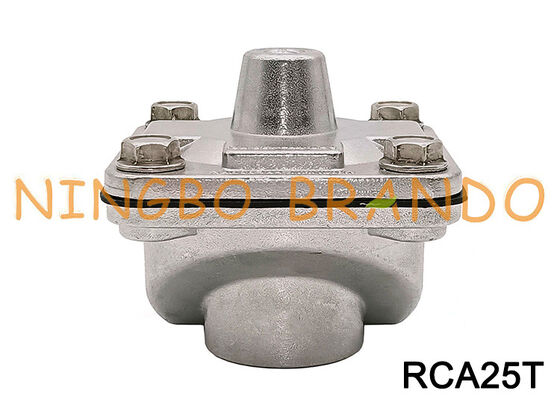

Goyen Type RCA25T Remote Pilot Pulse Jet Valve 1Inch RCA25T000 RCA25T010 RCA25T200
Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve. The fast opening and closing of the valve is of great importance for effective cleaning of filters and economical consumption of compressed air. This is made possible by keeping the weight of the moving parts small and therefore having a small inertia. These valves have very high kV values.
Technical Data of T Series Pulse Jet Valves:
|
Model Number
|
RCA15T
|
RCA20T
|
RCA25T
|
RCA35T
|
RC45T
|
RCA50T
|
RCA62T
|
RCA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Pilot Size
|
1/8'', 1/4''
|
|||||||
|
Working pressure
|
0.35 to 0.85 MPa
|
|||||||
|
Diaphragm Material
|
NBR, VITON
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:
Main Dimension of RCA25T Pulse Jet Valve:
Video of RCA25T Goyen Type Pulse Jet Valve:
More Goyen Type Pulse Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
