| 원래 장소: | 중국, 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | RCA45T |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 상자, 팔레트 |
| 배달 시간: | 4-7 근무일 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 10000pcs |
| 제품명: | 펄스 제트 밸브 | 파일럿 크기: | 1/8 '', 1/4 '' |
|---|---|---|---|
| 포트 크기: | 1.5 '' | 시리즈: | 티 |
| 밸브 구조: | 직각, 나사산 포트 | 밸브 바디 재료: | 알루미늄 합금 |
| 막 재료: | NBR, Viton | 작동 압력 범위: | 5 ~ 125psi |
| 강조하다: | Goyen Diaphragm Valve RCA45T,Goyen Pulse Valve RCA45T001,Goyen Pulse Valve RCA45T010 |
||

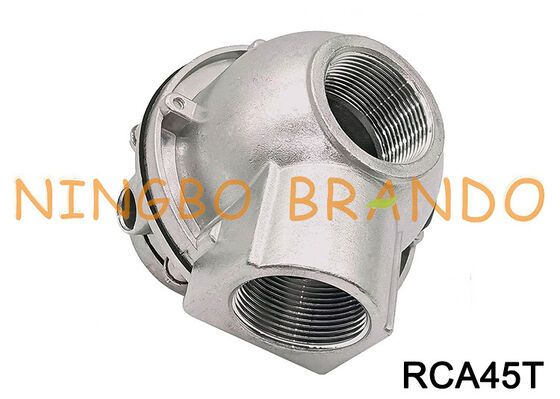

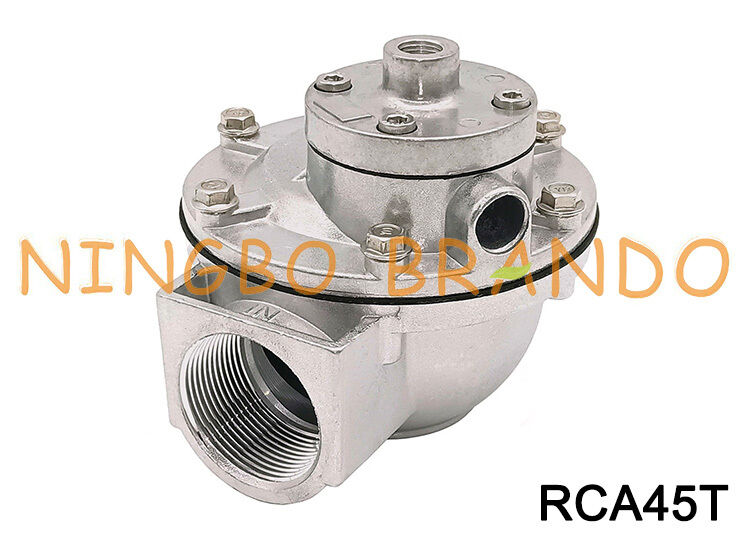

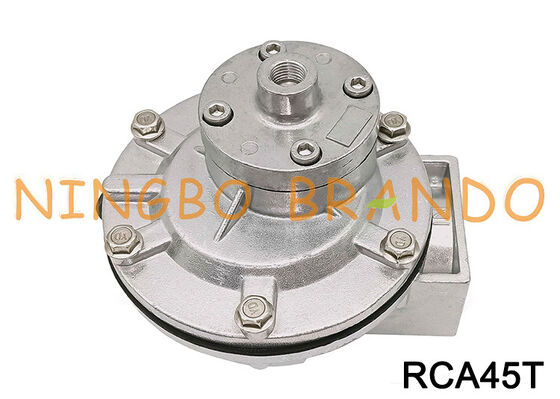

Goyen Type RCA45T Threaded Pulse Jet Valve 1-1/2'' RCA45T001 RCA45T010
BRANDO has over 10 years of experience in the design and manufacture of pulse jet valves in dust collectors. Our threaded pulse valves are manufactured from aluminum in a high-pressure die cast process. T-series is designed to operate with air pressures from 5 to 125 psi. These threaded valves can be orientated in any position other than upside down or inverted.
The temperature range of the threaded valves depends on the chosen model and diaphragm:
NBR diaphragms: -40 °C (-40°F) to 82°C (179.6°F)
Viton diaphragms -29°C (-20.2°F) to 232°C (449.6°F)
Technical Data of T Series Pulse Jet Valves:
|
Model Number
|
RCA15T
|
RCA20T
|
RCA25T
|
RCA35T
|
RC45T
|
RCA50T
|
RCA62T
|
RCA76T
|
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
|
Diaphragm Number
|
1
|
2
|
||||||
|
Pilot Size
|
1/8'', 1/4''
|
|||||||
|
Working pressure
|
5 to 125 psi
|
|||||||
|
Diaphragm Material
|
NBR, VITON
|
|||||||
|
Body Material
|
Aluminum Alloy
|
|||||||
|
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
|||||||
Ordering Code of T Series Pulse Jet Valve:
Main Dimension of 1.5'' RCA45T Pulse Jet Valve:
More Goyen Type Pulse Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
