| 원래 장소: | 중국, 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | 3-8V6 |
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 상자, 팔레트 |
| 배달 시간: | 4-7 근무일 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 10000pcs |
| 제품명: | 파일럿 밸브 장치 | 포트 크기: | 1/8' (NPT, BSPP) |
|---|---|---|---|
| 부착체물질: | 알루미늄 (다이 캐스트) | 씰 재질: | NBR, Viton |
| 작동 압력 범위: | 0 내지 125 psi | 인클로저 크기: | 8 |
| 조종사 수: | 6 | 공급 전압: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| 강조하다: | 3-8V6 Goyen Solenoid Pilot Valve Enclosure Box,Goyen 3-8V6 Enclosure,Goyen Pilot Enclosure 3-8V6 |
||

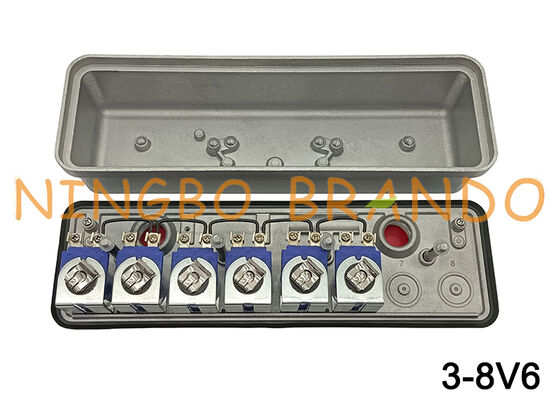

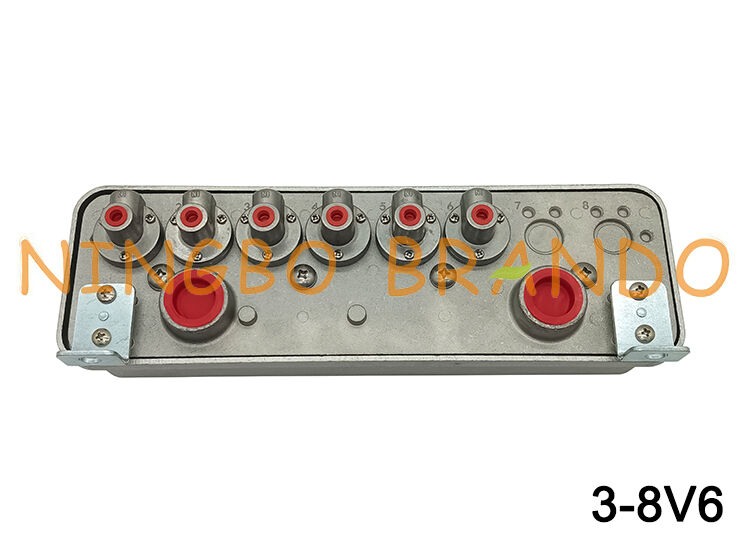

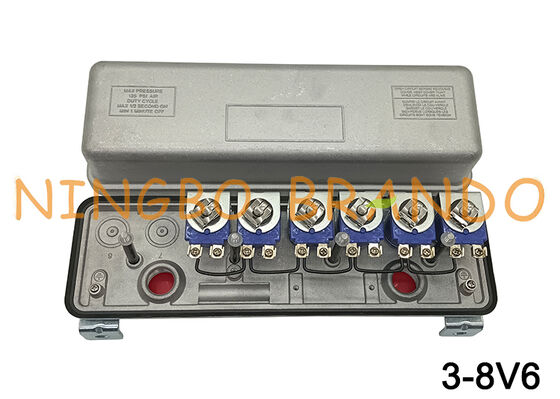

3-8V6 Goyen Type Solenoid Pilot Valve Enclosure 3-8V6000-330 3-8V6000-336 12V 24V 110V 220V
Diecast aluminum enclosures for Goyen RCA3D pilot valves. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves. Ensure device is disconnected from power before opening the enclosure. For reliable operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage.
Ordering Code of RCA3D Pilot Valve Enclosure:
Video of 3-8V6 Pilot Valve Enclosure:
Main Dimension of 3-8V Pilot Valve Enclosure:
Technical Data of RCA3D Solenoid Pilot Valve:
|
Model
|
Port Size
|
Coil Type
|
Voltage
|
Power
|
|
RCA3D0-330
(Old RCA3D2-T-QT/1392B)
|
1/8'' NPT
|
Screw / Spade
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
RCA3D0-331
(Old RCA3D2-T-QT/1004B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D0-332
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D0-333
|
240V DC
|
24W
|
||
|
RCA3D0-334
|
110V DC
|
24W
|
||
|
RCA3D0-335
|
48V DC
|
20W
|
||
|
RCA3D0-336
(Old RCA3D2-T-QT/764B)
|
24V DC
|
20W
|
||
|
RCA3D0-337
(Old RCA3D2-T-QT/1295B)
|
12V DC
|
20W
|
||
|
RCA3D1-330
(Old RCA3D2-T-QT/880B)
|
1/8'' BSPP
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
|
RCA3D1-331
(Old RCA3D2-T-QT/869B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D1-332
(Old RCA3D2-T-QT/1117B)
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D1-333
|
240V DC
|
24W
|
||
|
RCA3D1-334
|
110V DC
|
24W
|
||
|
RCA3D1-335
|
48V DC
|
20W
|
||
|
RCA3D1-336
(Old RCA3D2-T-QT/1051B)
|
24V DC
|
20W
|
||
|
RCA3D1-337
|
12V DC
|
20W
|
More Goyen Type Pulse Valves for you to choose:
|
|
|
|
| T Series | DD Series | FS Series | MM Series |
|
|
|
|
| RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
