| 원래 장소: | 중국 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | BAPC210028603 |
| 최소 주문 수량: | 200 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 안 상자, 판지, 깔판 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 한 달에 300000sets |
| 제품명: | 펄스 밸브 전기자 | 주문 코드: | GPC10 |
|---|---|---|---|
| 잠수부 튜브 소재: | 스테인레스 스틸 | 씰 재질: | NBR, Viton |
| 장착 된 펄스 밸브 모델: | FP20, FP25, DP20, DP25, EP25, SQP20, SQP25, FDP20, FDP25, FP40, DP40, EP40, FP50, FP55, SQP50, SQP55 | 1세트: | 1pc 플런저 튜브, 1pc 철 코어, 1pc 스프링 |
| 강조하다: | GPC10 Assembly Replacement,GPC10 Assembly Kit For Turbo,Turbo GPC10 |
||

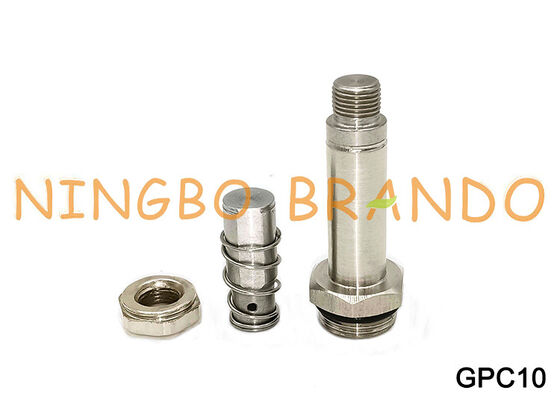

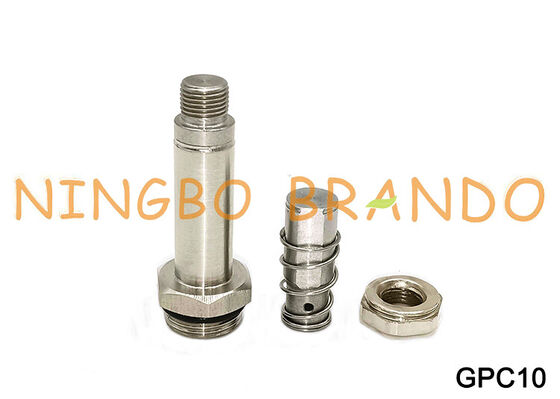

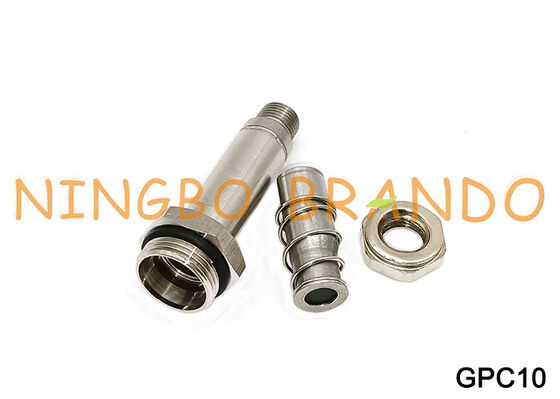

Turbo Type GPC10 Pilot Armature Plunger For Pulse Valve Assembly Replacement
This is GPC10 solenoid armature for Turbo Pulse Jet Valve FP20, FP25, DP20, DP25, EP25, SQP20, SQP25, FDP20, FDP25, FP40, DP40, EP40, FP50, FP55, SQP50, SQP55, SQP60, SQP65, FP65, SQP75.
Electromagnetic pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Dimension & Data of Armature, Coil for Turbo Pulse Valve:
|
BRANDO Model
|
BAPC210029002
|
|
Ordeirng Code
|
GPC 10
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, VITON
|
|
BRANDO Model
|
BB10230001
|
|
Ordering Code
|
BH10
|
|
Voltage
|
24VDC, 110VAC, 220VAC
(50/60Hz)
|
|
Power
|
10VA, 19VA, 6W, 15W
|
|
Connector
|
DIN 43650 Form A
|
|
Insulation Class
|
F, H
|
Video of Solenoid Armature For Turbo Pulse Valve:
BRANDO Solenoid Valve Armature Production Video:
More Turbo Type Pulse Jet Valve for you to choose:
|
|
|
| Threaded Type | Submerged Type | Valve Diaphragm |
|
|
|
| Solenoid Coil | Solenoid Armature | Pulse Controller |
