| 원래 장소: | 중국 |
| 브랜드 이름: | Brando |
| 인증: | CE |
| 모델 번호: | 4M320-10 |
| 최소 주문 수량: | 50개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 개별 상자, 카톤, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 한 달에 200000 PC |
| 밸브 종류: | 5곳 길 2 위치 | 포트 크기: | 입력=3/8'', 출력=1/4'' |
|---|---|---|---|
| 압력 범위: | 0.15 0.8 MPa에 | 맥스 압력저항: | 1.2 MPa |
| 본체 재질: | 알루미늄 합금 | 최대 주파수: | 4사이클/초 |
| 연기: | 내부 파일럿 | 온도 범위: | -20 내지 +70C |
| 체액: | 공기(40μm 필터 요소로 필터링됨) | ||
| 강조하다: | 4M320-10 Namur Pneumatic Valve,3/8'' Namur Pneumatic Valve,Airtac 4M320-10 Pneumatic Valve |
||

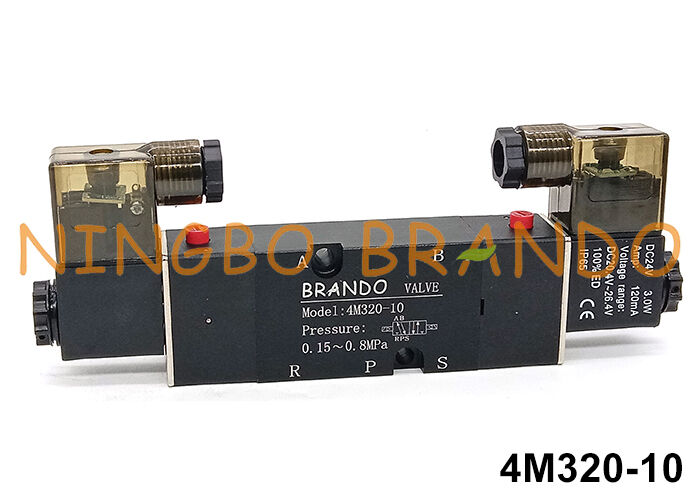

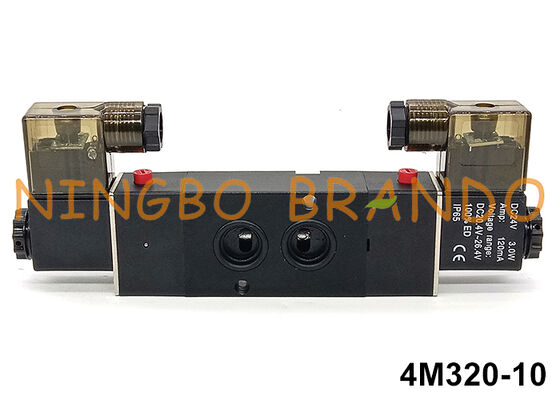

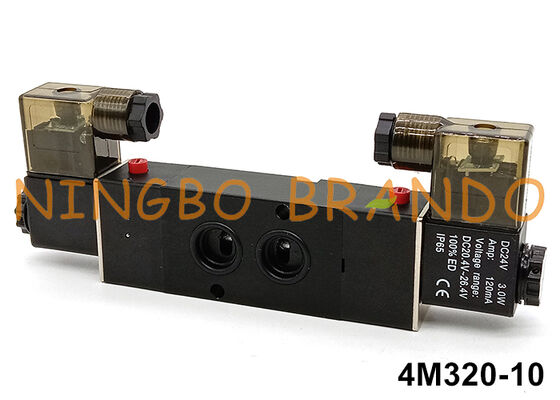

4M320-10 3/8'' Airtac Type Namur Pneumatic Valve 5/2 Way
NAMUR valves can be used in a variety of pneumatic and hydraulic systems to control actuators, larger industrial valves or fluid power motors. They come in a range of sizes, including compact in-line versions which can be used individually or in a manifold. These provide high flow rates for their small size. The standard interfaces of NAMUR valves and direct mounting make them simpler and faster to install than integrated pneumatic solenoids, and therefore help to reduce installation costs. There is also less damage to pipelines, and more room for installers to refit the other components.
Technical Data of 4M Series Namur Solenoid Valve:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=1/4'', Out=1/8'' | In=Out=1/4'' | In=3/8'', Out=1/4'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||
Dimension of 4A320-10 Namur Solenoid Valve:
