당신의 수요에 초점
당신에게 제일 해결책을 제안하십시오
영업 및 지원:
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | 비씨-08-3 |
| 최소 주문 수량: | 1세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 5000PCS |
| 제품명: | 펄스 컨트롤러 | 채널 번호: | 8 |
|---|---|---|---|
| 입력 전압: | 220VAC | 출력 전압: | 24Vdc |
| 펄스폭: | 00.01~99.99초 | 펄스 간격: | 1~9999초 |
| 사이클 인터벌: | 1~6000초 | ||
| 강조하다: | Pulse Controller 24VDC,Pulse Controller 8 Lines,Pulse Valve Controller 8 Channel |
||

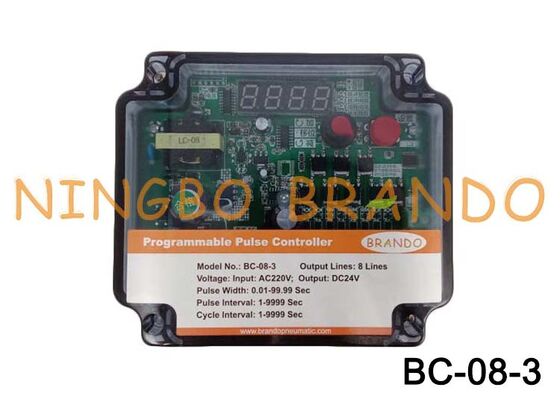

8 Lines 220VAC Input 24VDC Output Pulse Valve Controller For Dust Collector
Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.
1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;
Technical Data:
| Model No | BC-08 | BC-10 | BC-12 | BC-16 | BC-20 | BC-24 | BC-30 | BC-36 | BC-52 | BC-64 |
| Channel No | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 52 | 64 |
| Input Voltage | 24VDC, 110VAC, 220VAC, other can be customized | |||||||||
| Output Voltage | 24VDC, 24VAC, 110VAC, 220VAC, other can be customized | |||||||||
| Pulse Width | 0.1 to 999.9 Seconds | |||||||||
| Pulse Interval | 1 to 9999 Seconds | |||||||||
| Cycle Interval | 1 to 9999 Seconds | |||||||||
| Working Environment | 1. -25°C to +55°C 2. The relative humidity of the air does not exceed 85% 3. No serious corrosion gas and conductive dust 4. No violent vibration or shock |
|||||||||
Detailed Images:
Controller Setting:
Controller Wiring:
Our Production:
Related Products:
|
|
|
|
| Pulse Valve | Solenoid Coil | Solenoid Armature | Diaphragm |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
