| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | K20 |
| 최소 주문 수량: | 1PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 100000 PC |
| 제품명: | 펌프 피스톤 비브레이터 | 포트 크기: | G1/4 " |
|---|---|---|---|
| 정격주파수: | 10500~16500RPM | 원심력: | 720~1720N |
| 공기 소비량: | 130~340리터/분 | ||
| 강조하다: | K-20 - Findeva Ball Vibrator,K20 Pneumatic Ball Vibrator,Vibrator K20 Ball Type |
||

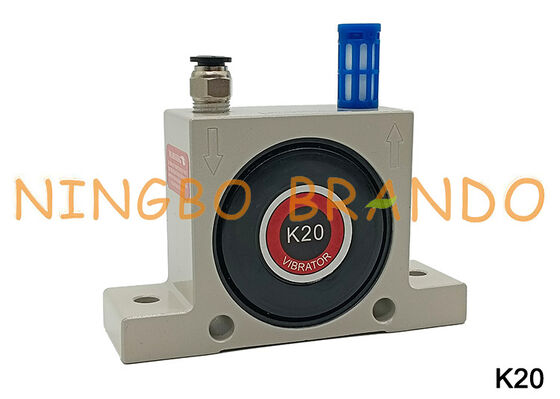

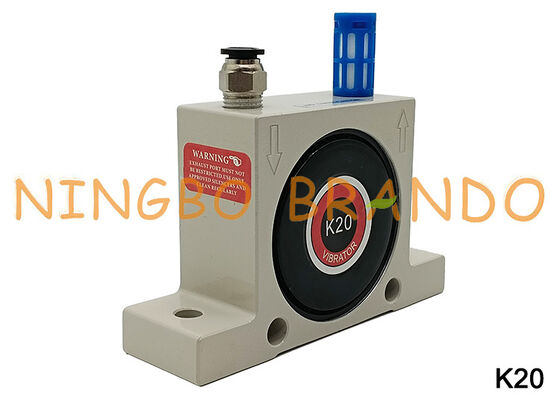

K Series Ball Type Pneumatic Vibrator K20 For Industrial Hopper
You can expect a powerful ball vibrator with a centrifugal force ranging from 130 – 4050 N when you choose from our K series. Vibration is caused by a ball that's guided by hardened steel plates, while nylon plates on either side support the ball and offer protection from moisture and dust. The extruded aluminium housings have four mounting bores which can be used according to the application. Continuously variable with a rated frequency of between 7300 to 35000 rpm, these durable components can be used at temperatures of up to 100°C. Should you require a ball vibrator that can withstand extreme heat, our up to 150°C HT-Version is available on request.
Main Dimension of K Series Pneumatic Ball Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
K-8
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-10
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-13
|
65
|
24
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-16
|
65
|
27
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-20
|
80
|
33
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-25
|
80
|
38
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-30
|
100
|
44
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
K-36
|
100
|
50
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
Technical Data of K Series Pneumatic Ball Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
K-8
|
25.5
|
31.0
|
35.0
|
130
|
260
|
360
|
83
|
145
|
195
|
|
K-10
|
22.5
|
28.0
|
34.5
|
250
|
470
|
710
|
92
|
150
|
200
|
|
K-13
|
15.0
|
18.5
|
22.5
|
320
|
550
|
870
|
94
|
158
|
225
|
|
K-16
|
13.0
|
17.0
|
19.5
|
450
|
800
|
1100
|
122
|
200
|
280
|
|
K-20
|
10.5
|
14.5
|
16.5
|
720
|
1220
|
1720
|
130
|
230
|
340
|
|
K-25
|
9.2
|
12.2
|
14.0
|
930
|
1570
|
2050
|
160
|
290
|
425
|
|
K-30
|
7.8
|
9.7
|
12.5
|
1510
|
2470
|
3210
|
215
|
375
|
570
|
|
K-36
|
7.3
|
9.0
|
10.0
|
2060
|
3150
|
4050
|
260
|
475
|
675
|
Construction of K Series Pneumatic Ball Vibrators:
