| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | FDF3A |
| 최소 주문 수량: | 5개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 100000 PCS |
| 제품명: | 냉동 솔레노이드 밸브 | 튜브 외경(mm): | 6.34 |
|---|---|---|---|
| 와이어링 형식: | 플라잉 리드 | 일반 위치: | NC(상시 폐쇄) |
| 작동: | 직접 연기 | 전압: | 24VDC, 24VAC, 110VAC, 220VAC |
| 애플리케이션: | 에어컨, 히트펌프, 제빙기, 냉동고, 쿨러 등 | 최대 작동 압력: | 4.5 Mpa |
| 강조하다: | solenoid valve FDF3A,FDF3A air conditioning solenoid valve,SANHUA Solenoid Valve FDF3A |
||

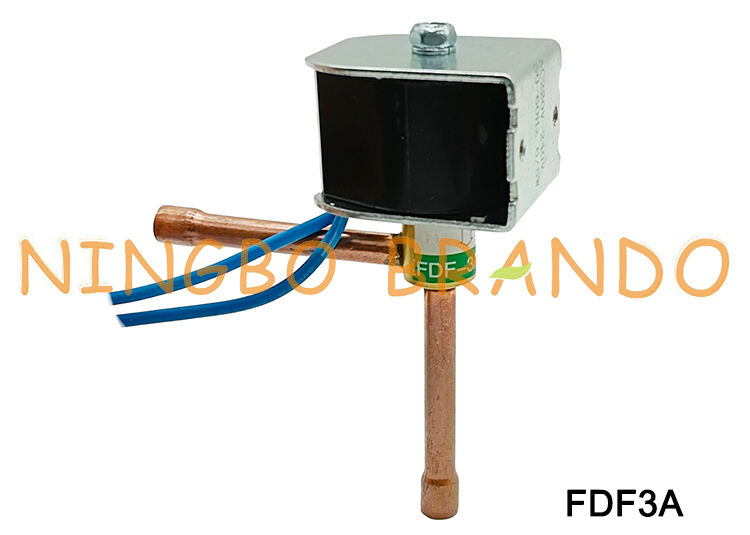

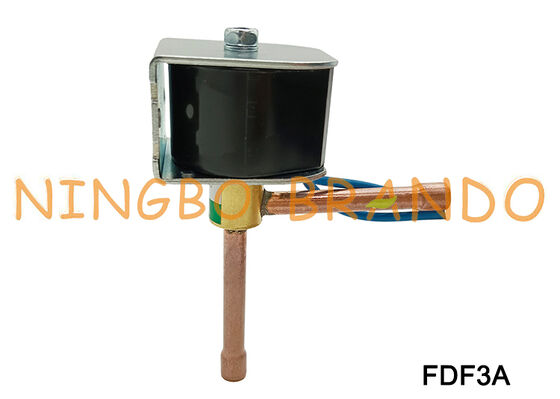

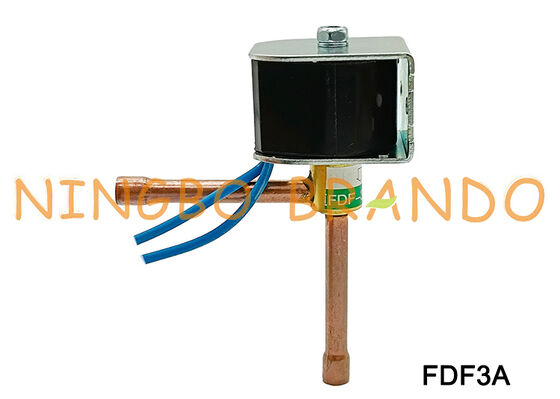

FDF3A FDF3A08 Sanhua Type Air Conditioner and Ice Machine Solenoid Valve
FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.
* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow
Technical Data of FDF NC Series Solenoid Valve:
|
Model
|
FDF2A94
|
FDF2.5A06
|
FDF3A08
|
FDF4A10
|
FDF6A58
|
FDF8A21
|
FDF11A05
|
FDF13A07
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Kv(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa)
|
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP (MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch)
|
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm)
|
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|
Main Dimension of FDF NC Series Solenoid Valve:
|
Model
|
Measurement (mm)
|
||
|
L
|
L1
|
L2
|
|
|
FDF 2A 94
|
67
|
32
|
34
|
|
FDF 2.5A 08
|
85
|
38
|
38
|
|
FDF 3A 08
|
81
|
35
|
36
|
|
FDF 4A 10
|
81
|
35
|
38
|
|
FDF 6A 58
|
81
|
35
|
36
|
|
FDF 8A 21
|
114
|
62
|
62
|
|
FDF 11A 16
|
113
|
61
|
61
|
|
FDF 13A 12
|
114
|
62
|
62
|
