| 원래 장소: | 중국 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | BB14542505 |
| 최소 주문 수량: | 200 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 달 당 250000 조각 |
| 제품명: | 솔레노이드 밸브 코일 | 전압: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|---|---|---|---|
| 힘: | 18VA, 28VA, 14W, 20W | 연결: | DIN43650A |
| 보호 등급: | IP65 | 절연 등급: | f, h |
| 강조하다: | 0545 Solenoid Valve Coil 220v,0545 solenoid coil,Solenoid Valve Coil 0545 |
||

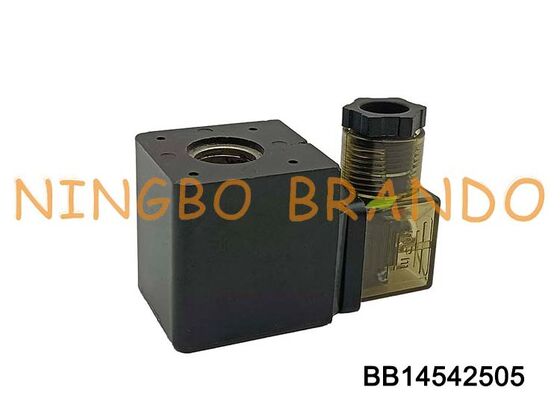

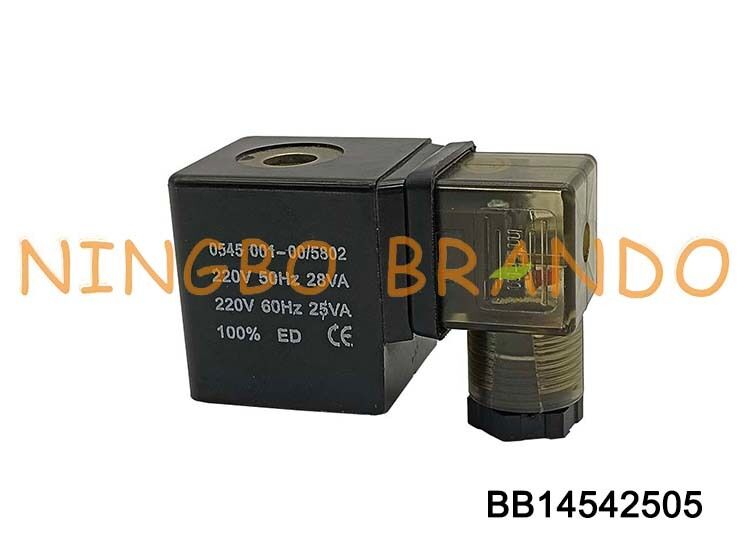

0545 Solenoid Coil Nass Magnet Type 0545 00.1-00/5802 12V 24V DC 110V 220V AC
This solenoid coil is same with Nass Magnet solenoid coil 0545, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 18VA, 28VA, 14W, 20W. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.
Dimension & Data of 0545 Solenoid Coil, Armature:
|
BRANDO Model
|
BB14542505
|
|
Ordering Code
|
0545
|
|
Voltage
|
220VAC, 110VAC,
24VDC, 12VDC
|
|
Power
|
18VA, 28VA, 14W, 20W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
BRANDO Model
|
BAPC214548001
|
|
Function
|
2 Way Normally Closed
|
|
Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, EPDM, FKM
|
Ordering Code of 0545 Solenoid Coil:
| Code No | Voltages | Frequency(Hz) |
Power (W)
|
Power (VA) |
| 113-030-0123 | 24VDC | 4,1 | ||
| 113-030-0144 | 24VAC | 50 | 8,8 | |
| 113-030-0144 | 24VAC | 60 | 7,6 | |
| 113-030-0128 | 220VAC | 50 | 9,0 | |
| 113-030-0128 | 240VAC | 60 | 9,2 | |
| 113-030-0142 | 230VAC | 50 | 8,8 | |
| 113-030-0142 | 230VAC | 60 | 7,6 | |
| 113-030-0121 | 220VAC | 50 | 14,0 | |
| 113-030-0124 | 24VDC | - | 7,9 | |
| 113-030-0135 | 24VAC | 50 | 14,0 | |
| 113-030-0135 | 24VAC | 60 | 12,0 | |
| 113-030-0279 | 110VAC | 50 | 13,9 | |
| 113-030-0279 | 110VAC | 60 | 12,2 | |
| 113-030-0125 | 24VDC | - | 11,9 | |
| 113-030-0129 | 24VAC | 50 | 21,0 | |
| 113-030-0129 | 24VAC | 60 | 18,0 | |
| 113-030-0126 | 110VAC | 50 | 21,5 | |
| 113-030-0141 | 230VAC | 50 | 22,0 | |
| 113-030-0141 | 230VAC | 60 | 19,0 | |
| 113-030-0120 | 12VDC | - | 17,5 | |
| 113-030-0127 | 24VAC | 50 | 25,0 | |
| 113-030-0132 | 24VDC | - | 18,5 | |
| 113-030-0120 | 36VAC | 50 | 25,0 | |
| 113-030-0137 | 110VAC | 50 | 27,5 | |
| 113-030-0140 | 110VAC | 60 | 26,5 | |
| 113-030-0137 | 120VAC | 60 | 28,0 | |
| 113-030-0133 | 220VAC | 50 | 25,5 | |
| 113-030-0122 | 220VAC | 50 | 22,0 | |
| 113-030-0138 | 230VAC | 50 | 25,5 | |
| 113-030-0133 | 240VAC | 60 | 25,0 | |
| 113-030-0138 | 240VAC | 60 | 27,0 |
Video of 0545 Solenoid Coil:
BRANDO Solenoid Valve Coils Production Video:
More Solenoid Valves for you to choose:
|
|
| PU220A Series | PU225A Series |
|
|
| SPU225A Series | PU225S Series |
