이튼 비커스 타입 유압 솔레노이드 밸브 코일

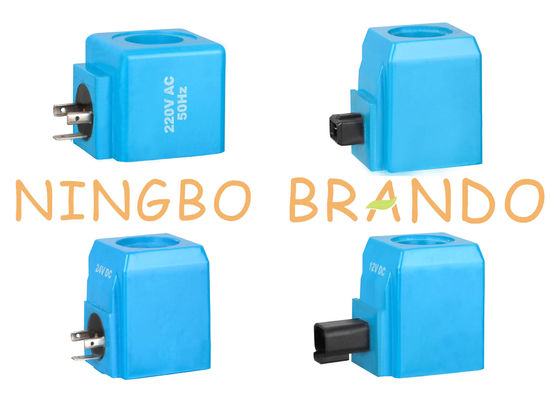

Eaton Vickers Type Hydraulic Solenoid Valve Coil

Specification:
Current type: AC, DC
Voltage: 12V, 24V, 36V, 48V, 110V, 115V, 220V, 230V
Application: For Vickers hydraulic valve
Size: NG6, NG10
Connector type: DIN 43650A, Deutsch, Amp, Flying Leads, etc.

Vickers solenoid coil, also called Vickers coil, Eaton Vickers solenoid coil or Eaton solenoid coil. Just like Rexroth solenoid coil and Yuken solenoid coil, Vickers solenoid coil is a necessary part of Vickers solenoid or Vickers solenoid valve. By the voltage, Vickers solenoid coil can be divided into AC and DC type.

Dimension & Data of Hydraulic Solenoid Valve Coil:

Picture	Dimension	Model	BB23660411
		Ref. No	507847 (12V) 507848 (24V)
		Voltage	12VDC, 24VDC
		Power	30W
		Connector Type	DIN43650A
		Insulation Class	F
		Protection Class	IP65

Picture	Dimension	Model	BB23660407
		Ref. No	02-124661 (12V) 02-124662 (24V)
		Voltage	12VDC, 24VDC
		Power	30W
		Connector Type	AMP
		Insulation Class	F
		Protection Class	IP67

Picture	Dimension	Model	BB23660412
		Ref. No	02-365539
		Voltage	12VDC, 24VDC
		Power	30W
		Connector Type	DEUTCH
		Insulation Class	F
		Protection Class	IP67

Picture	Dimension	Model	BB23745309
		Ref. No	02-101727 (220V) 02-101726 (110/120V)
		Voltage	110VAC, 220VAC
		Power	17W
		Connector Type	DIN43650A
		Insulation Class	H
		Protection Class	IP65

Brando Factory Production of Solenoid Valve Coil:

Other hydraulic solenoid valve coil fo you to choose:

Bosch Rexroth Type Hydraulic Solenoid Valve Coil:

Yuken Type Hydraulic Solenoid Valve Coil:

Advantages of our hydraulic solenoid coil as follows:

1. A variety of integrated connections and wires ideas available.

2. The advanced design of one-piece and shell encapsulated, and hydraulic solenoid coil meets the most stringent environmental requirements for mobile and industrial applications.

3. IP69K Environmental Protection: IP69K can prevent dash and high-pressure spray entering the solenoid coil. IP69K test is focused on the rating protection against high-pressure spray, high-temperature liquid and close nozzle distance from the enclosure surface. IP69K is standard on coils with MetriPac or Deutsch, integrated connectors.

4. Our hydraulic solenoid coil can replace all current Eaton Vickers coils used on D Frame and Shell type coils. Compact coil applies for most 8, 10, 12, 16 and 20 series valves.

5. No additional water/weather proofing is needed.

6. The design of steel shell encapsulated provides protection against physical and environmental damage.
