당신의 수요에 초점
당신에게 제일 해결책을 제안하십시오
영업 및 지원:
 |
| 원래 장소: | 중국 닝보 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | D25 |
| 최소 주문 수량: | 1세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 플라스틱 봉지, 상자, 카튼, 팔렛 |
| 배달 시간: | 4 내지 7 일 |
| 지불 조건: | T/T, 페이팔, 웨스턴 유니온 |
| 공급 능력: | 한 달에 10 만 세트 |
| 제품명: | 펄스 밸브 다이어프램 | 다이어프램 재료: | NBR, FKM |
|---|---|---|---|
| 시트 재료: | 고무, 나일론 | 1세트: | 1pc 다이어프램, 1pc 스프링 |
| 장착된 펄스 밸브 포트 크기: | 1 '' | 장착 된 펄스 밸브 모델: | DMF-Z-25, DMF-ZM-25, DMF-Y-25 |
| 강조하다: | 1 inch pulse valve diaphragm repair kits,BFEC Diaphragm Repair Kit,1'' Dust Collect Valve Nitrile Diaphragm |
||

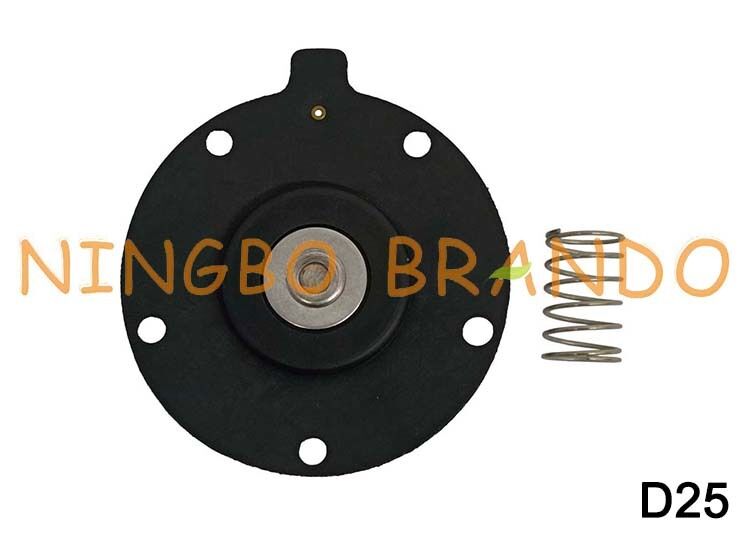

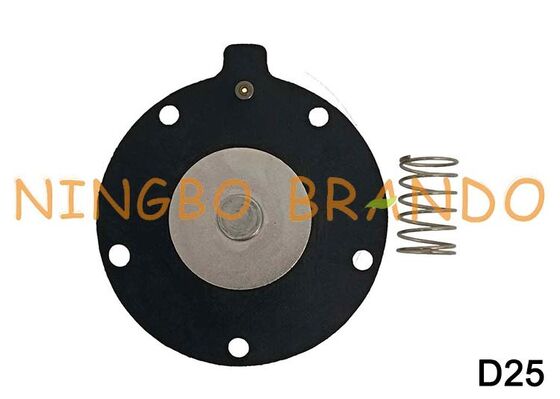

Pulse Jet Valve 1'' BFEC Diaphragm Repair Kit for DMF-Z-25 DMF-ZM-25 DMF-Y-25
Diaphragm (Membrane) for 1'' BFEC pulse valve DMF-Z-25, DMF-ZM-25, DMF-Y-25; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.
Ordering Number of Diaphragm For SBFEC Pulse Valve:
|
Diaphragm For New Version BFEC Pulse Valves
|
||
|
Diaphragm Order Code
|
Fitted Pulse Valve Model
|
Valve Port Size
|
|
DTY
(Secondary Diaphragm)
|
All Double Diaphragm Pulse Valves
|
/
|
|
D20A
|
DMF-Z20
|
3/4''
|
|
DMF-ZM-20
|
||
|
D20B
|
DMF-ZL-B
|
3/4''
|
|
D25
|
DMF-Z-25
|
1''
|
|
DMF-ZM-25
|
||
|
DMF-Y-25
|
||
|
DMF-T-20
|
3/4''
|
|
|
D40
|
DMF-Z-40S
|
1-1/2''
|
|
DMF-Y-40S
|
||
|
DMF-ZF-40S
|
||
|
DMF-ZM-40S
|
||
|
DMF-T-25S
|
1''
|
|
|
D50
|
DMF-Z-50S
|
2''
|
|
DMF-Y-50S
|
||
|
DMF-T-50S
|
||
|
D62
|
DMF-Z-62S
|
2-1/2''
|
|
DMF-Y-62S
|
||
|
DMF-T-62S
|
||
|
D76
|
DMF-Z-76S
|
3''
|
|
DMF-Y-76S
|
||
|
D102
|
DMF-Z-102S
|
4''
|
|
DMF-Y-102S
|
||
|
D102A
|
DMF-Y-102SA
|
4''
|
|
D300
|
DMF-N-300
|
12''
|
|
Diaphragm For Old Version BFEC Pulse Valves
|
||
|
LD50
|
DMF-Z-50S (Old)
|
2''
|
|
DMF-Y-50S (Old)
|
||
|
DMF-T-50S (Old)
|
||
|
LD62
|
DMF-Z-62S (Old)
|
2-1/2''
|
|
DMF-Y-62S (Old)
|
||
|
DMF-T-62S (Old)
|
||
|
LD76
|
DMF-Z-76S (Old)
|
3''
|
|
DMF-Y-76S (Old)
|
||
Main Dimension of D25 Diaphragm For BFEC Pulse Valve:
Video of D25 Membrane For BFEC Pulse Valve:
Pictures of Pulse Valve Diaphragm Production:
More Related Products For you to choose:
|
|
|
|
| Right Angle Type | Quick Mount Type | Straight Through Type | Submerged Type |
|
|
|
|
| Valve Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
