| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | PU220AR-03 |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 100000 PC |
| 포트 크기: | 3/8" | 오리피스 크기: | 8mm |
|---|---|---|---|
| 작업: | 보조 리프트 | 기능: | 2가지 방식은 정상적으로 마감되었습니다 |
| 본체 재질: | 놋쇠 | 다이어프램 재질: | NBR, FKM, EPDM |
| 전압: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| 강조하다: | SHAKO PU220AR-03 AC220V,SHAKO PU220AR-03 DC24V,Shako 2/2 Way Solenoid Valve PU220AR Series |
||

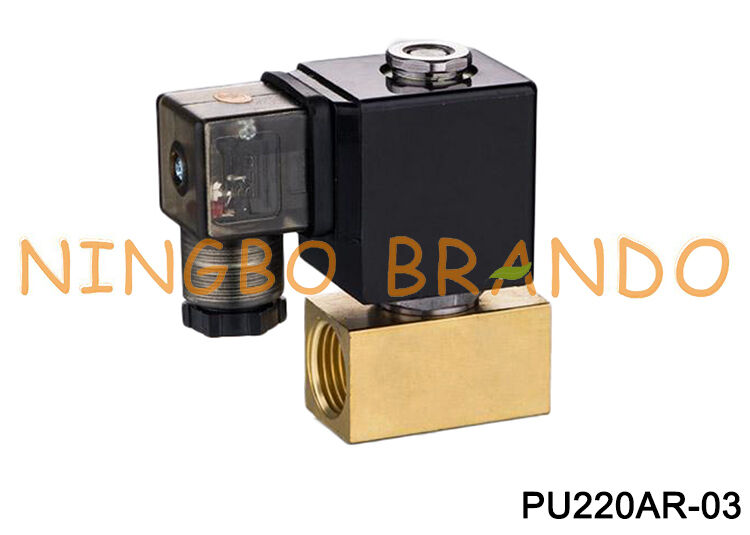

SHAKO Type PU220AR-03 2/2 Way Solenoid Valve PU220AR Series 3/8''
Miniature Brass Solenoid Valve 2/2 Way: PU220AR-01-02-03
1. 1/8'', 1/4'' or 3/8'' BSP or NPT thread
2. NBR seals,optional Viton or EPDM sealing.
3. 2/2 way normally closed quick response.
4. Pressure AC 0 to 20 bar / DC 0 to 13 bar depending on orifice, pressure tested to 30 bar.
5. Direct acting 1/8'', 1/4'' and assisted lift 3/8''.
6. Compact miniature 2 way solenoid valve.
7. Most voltages available.
8. Temperature media -10 to +90℃, ambient -10 to +60℃.
9. Coil class F, DIN43650B or flying lead wire 100% duty rated, option ATEX coil.
10. Brass body with stainless steel internals extend valve valve.
11. NBR seals suited for air, water, neutral gases and mineral oils - Viton seals fuel oil, gasoline, hi-test gasoline, diesel fuel - EPDM hot water and liquid detergents.
Main Dimension of PU220AR series Solenoid Valve:
|
Model
|
PU220AR-01
|
PU220AR-02
|
PU220AR-03
|
|
R
|
1/8''
|
1/4''
|
3/8''
|
|
A
|
22
|
25.4
|
30
|
|
B
|
22
|
35
|
55
|
|
C
|
72
|
75
|
79
|
|
D
|
15
|
18
|
18
|
|
E
|
11
|
17.5
|
27.5
|
|
F
|
22
|
25.4
|
25
|
|
G
|
7.5
|
12.7
|
11
|
|
H
|
M4XP0.7XL6.5
|
M5XP0.8XL7.0
|
M5XP0.8XL7.0
|
Technical Data of PU220AR series Solenoid Valve:
|
PU220AR Series
|
PU220AR-01
|
PU220AR-011
|
PU220AR-012
|
PU220AR-02
|
PU220AR-021
|
PU220AR-022
|
PU220AR-03
|
|
Port Size
|
1/8''
|
1/4''
|
3/8''
|
||||
|
Orifice Size
|
1.5mm
|
0.8mm
|
1.2mm
|
2.3mm
|
1.2mm
|
1.5mm
|
8.0mm
|
|
Effective Area
|
1.8mm²
|
3.3mm²
|
20.64mm²
|
||||
|
Medium
|
Compressed Air, Light oil, Water
|
||||||
|
Action
|
Direct Acting
|
Assisted Lift
|
|||||
|
Function
|
2 Way, Normally Closed
|
||||||
|
Body Material
|
Brass
|
||||||
|
Pressure
Range (bar)
|
0 to 7 bar
|
||||||
|
Temperature Range
|
-5 to +80℃
|
||||||
|
Standard Voltages
|
24VDC, 110VAC, 220VAC, the other voltage is optional
|
||||||
Ordering Code of PU220AR series Solenoid Valve:
