| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | DIN 43650B-G |
| 최소 주문 수량: | 5개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 100000 PCS |
| 제품명: | DIN 43650 연결기 | 거리: | 11mm |
|---|---|---|---|
| 소음 타입: | DIN 43650 형식 비 | 형태: | 2+1GND, 3+1GND |
| 볼크링 전압: | AC380V, DC300V | 보호 등급: | IP65 |
| 노미칼 경향: | 10A | 접촉저항: | 5mΩ 이하 |
| 맥스 도체부: | 3x1.5mm2 | 고정 나사: | M3x30 |
| 강조하다: | DIN 43650 B Solenoid Connector,CONNECTOR FEMALE DIN 43650B,DIN43650B Connector with LED |
||

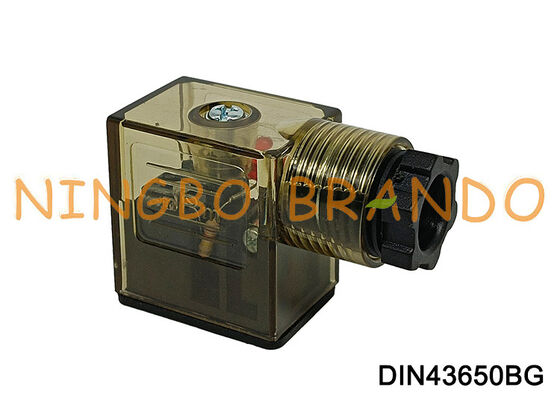

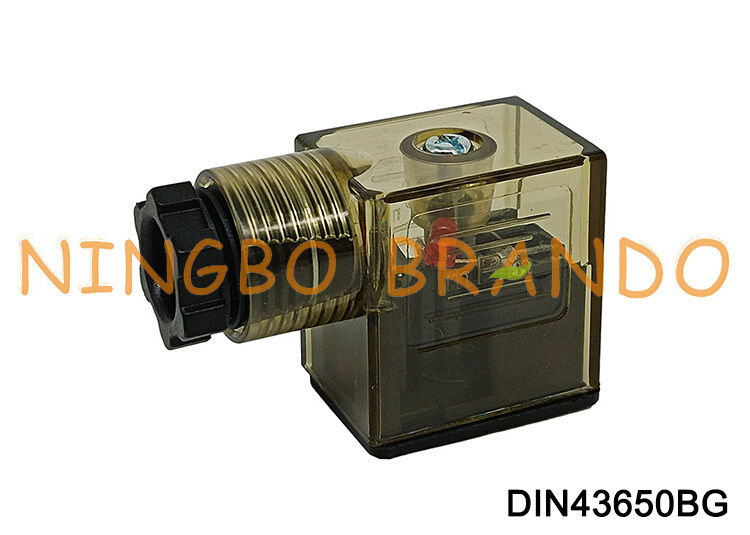

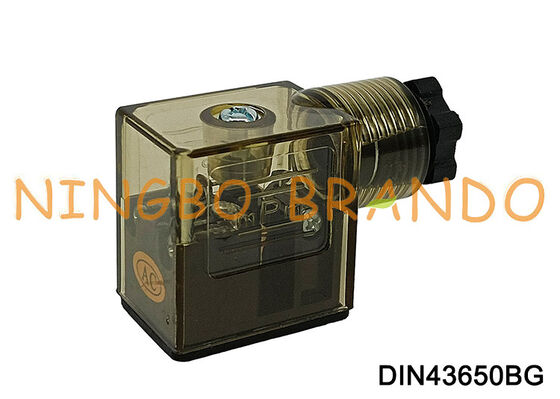

DIN43650B Solenoid Valve Coil Connector With LED DIN 43650 Type B
The MPM range of DIN 43650 connectors is used extensively to provide electrical connections in a wide range of applications. The most common application for mPm connectors is in conjunction with hydraulic, pneumatic or electro magnetic devices including solenoid valves. DIN 43650 solenoid connectors are available in three formats: Form A, Form B or Form C. They're made to function within certain voltage limits. There are also three gasket options available for DIN connectors: NBR Profile, NBR Flat or EPDM Flat, each with different characteristics. While NBR rubber is an oil-resistant material, EPDM rubber isn't as resilient against oils but can cope better with ozone, heat and adverse weather conditions.
Technical Data of DIN43650B Solenoid Valve Connector:
|
DIN 43650 Type
|
DIN 43650 Form B
|
|
Termination Method
|
Screw
|
|
Contact Spacing
|
11mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|
Dimension of DIN43650B Solenoid Coil Connector:
Product Video of DIN43650B Solenoid Valve Connetor:
