| 원래 장소: | 중국 |
| 브랜드 이름: | BRANDO |
| 인증: | None |
| 모델 번호: | DIN 43650C-G |
| 최소 주문 수량: | 5개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 내부 상자, 판지, 팔레트 |
| 배달 시간: | 협상 |
| 지불 조건: | T/T,웨스턴 유니온,머니그램 |
| 공급 능력: | 달 당 100000 PCS |
| 제품명: | DIN 43650 연결기 | 거리: | 9.4 밀리미터 |
|---|---|---|---|
| 소음 타입: | DIN 43650 형식 Ｃ | 형태: | 2+1GND, 3+1GND |
| 볼크링 전압: | AC380V, DC300V | 보호 등급: | IP65 |
| 노미칼 경향: | 10A | 접촉저항: | 5mΩ 이하 |
| 맥스 도체부: | 3x0.75mm2 | 고정 나사: | M3x25 |
| 강조하다: | Plug Solenoid Valve Coil Connector DIN43650C,DIN 43650 C Connector,DIN 43650-C Brown |
||

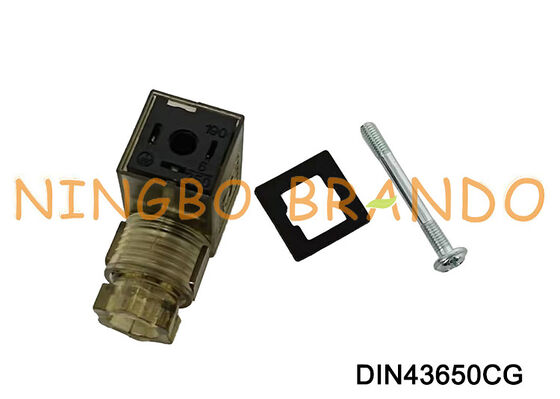

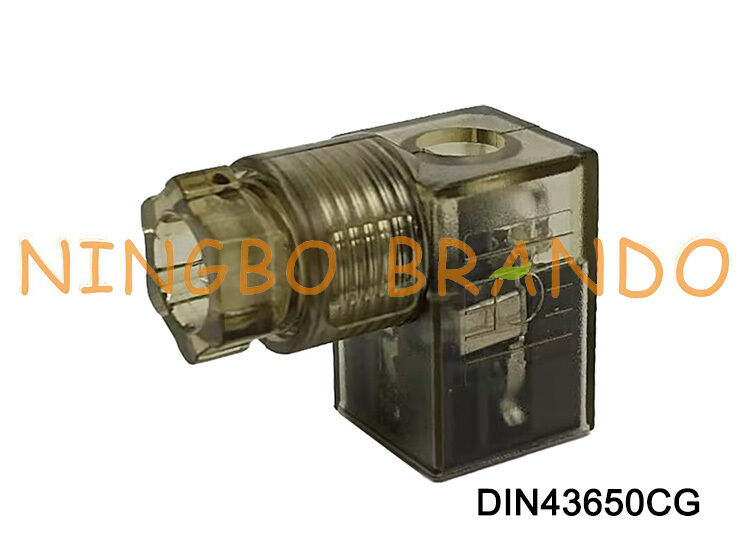

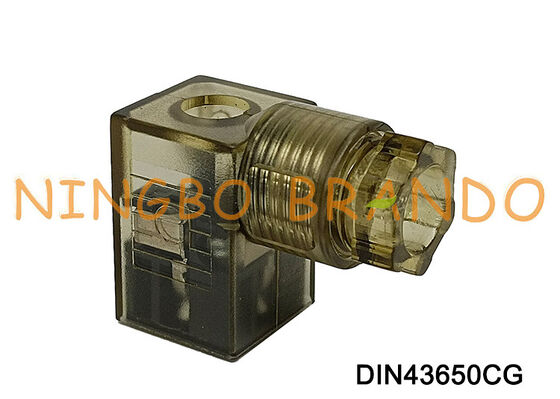

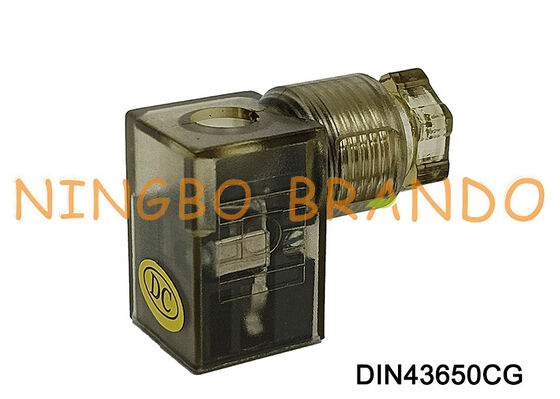

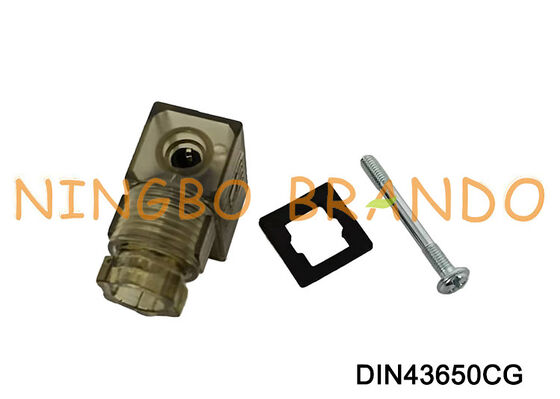

DIN43650C Solenoid Valve Coil Connector 9.4mm MPM Brown DIN 43650 Type C
DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications and are usually not affected by voltage surges or electro-magnetic interference.
Available in three formats: Form A, Form B or Form C. DIN 43650 solenoid connectors are designed to function within certain voltage limits. Gasket options for DIN connectors include - oil resistant NBR or ozone and heat resistant EPDM.
DIN 43650 solenoid connectors can be found in many industrial applications including machine building and tooling or equipment manufacturing processes, facilitating power and signal transmission in magnetic valves, sensors and pressure transducers.
Dimension & Data of Solenoid Coil Connector:
DIN 43650A Connector:
| Dimension |
DIN Type
|
DIN 43650 Form A
|
 |
Distance
|
18mm
|
|
Form
|
2+1GND, 3+1GND
|
|
|
Protection
Class
|
IP65
|
|
|
Working
Voltage
|
AC380V, DC300V
|
|
|
Fixing Screw
|
M3x28
|
|
|
Nomical Current
|
10A
|
|
|
Contact Resistance
|
≤5mΩ
|
|
|
Max Conductor Section
|
3x1.5mm²
|
DIN 43650B Connector:
| Dimension |
DIN Type
|
DIN 43650 Form B
|
|
Distance
|
11mm
|
|
Form
|
2+1GND, 3+1GND
|
|
|
Protection
Class
|
IP65
|
|
|
Working Voltage
|
AC380V, DC300V
|
|
|
Fixing Srew
|
M3x30
|
|
|
Nomical Current
|
10A
|
|
|
Cntact Resistance
|
≤5mΩ
|
|
|
Max Conductor Section
|
3x1.5mm²
|
DIN 43650C Connector:
| Dimension |
DIN Type
|
DIN 43650 Form C
|
|
Distance
|
9.4mm
|
|
Form
|
2+1GND, 3+1GND
|
|
|
Protection Class
|
IP65
|
|
|
Working Voltage
|
AC380V, DC300V
|
|
|
Fixing Screw
|
M3x25
|
|
|
Nomical Current
|
10A
|
|
|
Cntact Resistance
|
≤5mΩ
|
|
|
Max Conductor Section
|
3x1.5mm²
|
More Solenoid Valve Coil Connectors for you to choose:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
More Solenoid Valve Coils for you to choose:
|
|
|
|
| Pneumatic Solenoid Valve Coil | Pulse Valve Solenoid Coil | Water Solenoid Valve Coil | Hydraulic Solenoid Valve Coil |
